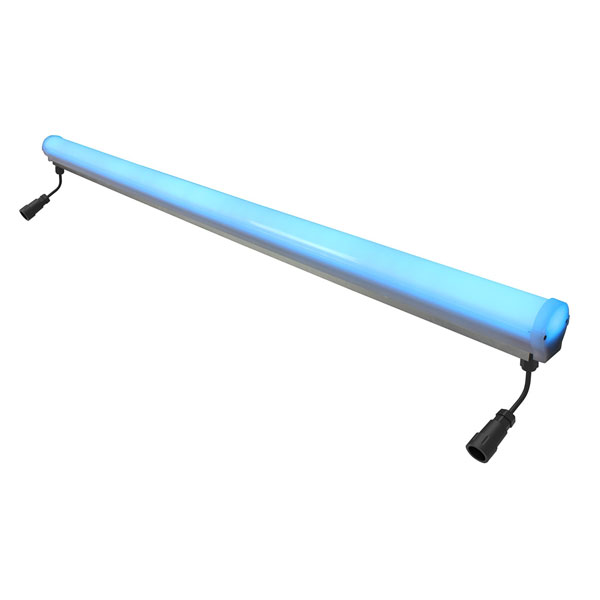

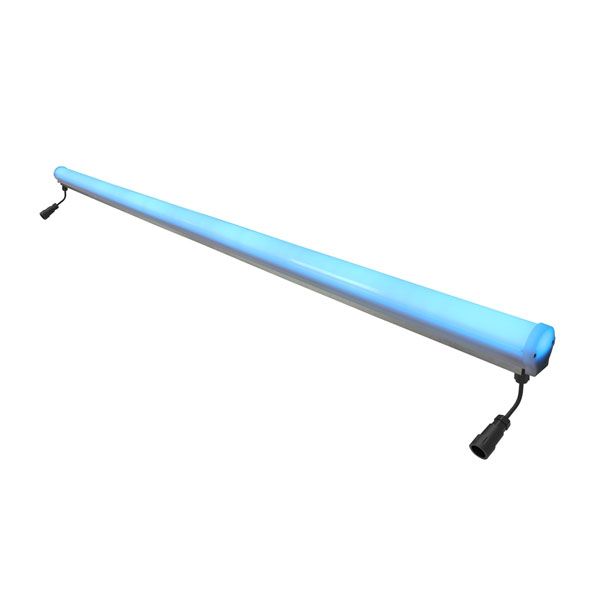

COLORFLOW RGBW 150cm (it.230087)

https://www.studiodue.com/web/image/product.template/2429/image_1920?unique=2ee3e03

Ultra small form factor LED LINEAR TUBE with IP 67 rating protection 150cm long. Suitable for architectural lighting, visual effects and light games. Standard 100cm. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 50cm.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Control type
  • DMX channels
  • Setup
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • CF-AB (art.900500)

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type RGBW
Number of LEDs 66
Red lumen (lm) 570
Green lumen (lm) 660
Blu lumen (lm) 240
White lumen (lm) 840
Optics
Lenses 180°
Control
Control type DMX - RDM
Functions and Setup
DMX channels 9ch - 5ch - 4ch
Setup RDM/DRS
Power supply
Input range 48VDC
Power max (W) 45
Current 1A@48VDC
Physical
IP protection rating 67
Sizes l x p x h (mm) 1510 x 46
Mounting systems Surface
Marine Grade treatment None
Weight (Kgs) 2,1
Product Category Linear Bar
Colour finishing None
Others
CF-AB (art.900500) No, Yes
