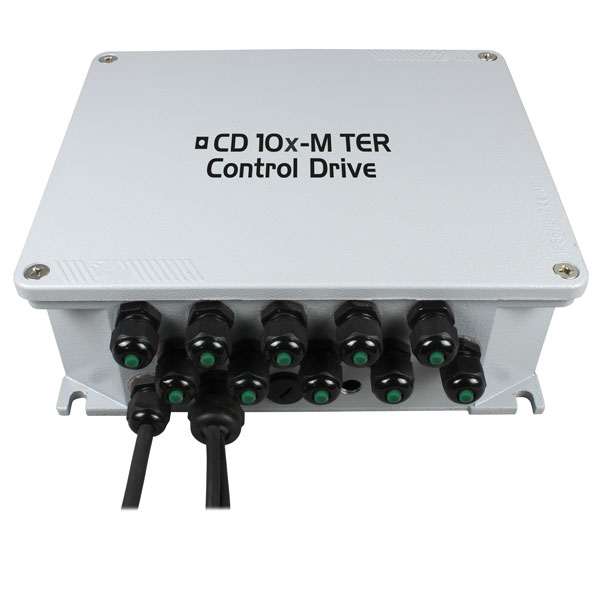

CD 10x M-TER MONO-DALI (it. 532055)
CD 10x M-TER MONO-DALI is a constant voltage multichannels LED driver.
With this driver, up to 10 Monochromatic devices can be controlled simultaneously.
Version with 5,5V output.
CD 10x M-TER MONO-DALI is a constant voltage multichannels LED driver.
With this driver, up to 10 Monochromatic devices can be controlled simultaneously.
Version with 5,5V output.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Control | |
|---|---|
| Output | n.10 x 5,5V constant voltage output |
| Functions and Setup | |
|---|---|
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 75 |
| Current | 0,33A@230VAC |
| Output voltage | 5,5V |
| Physical | |
|---|---|
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 253x217x90 |
| Weight (Kgs) | 1,5 |
| Product Category | Controller |
| Materials | Aluminium alloy housing |
