  3. SB/P PILOT MAX M DALI (it. 531520)
USD Pricelist
SB/P PILOT MAX M DALI (it. 531520)

SB/P PILOT MAX M DALI (it. 531520)

https://www.studiodue.com/web/image/product.template/2353/image_1920?unique=5a91a4b

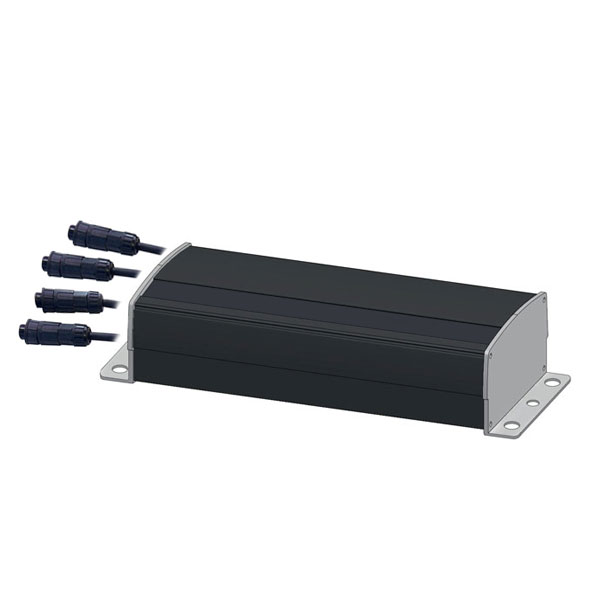

1 channel DALI Control Drive to control up to 16mt. of MONOCHROMATIC SLIMBAR. Without control panel. IP 65 protection rating. Version with 52V output.

Not Available For Sale

  • Connectors and cables
  • Control type
  • Output
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Output voltage
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Product Category

This combination does not exist.

Connectors and cables DMX OUT signal: cable 0,3mt. + 4pin connectors IP67 (female)
Control type DALI DT6
Output n.4 x 52V constant voltage output
Setup DALI
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 350
Current 1,5A@230VAC
Output voltage 52V
IP protection rating 65
Sizes l x p x h (mm) 390x150x85
Weight (Kgs) 2,6
Product Category Controller
Contact Us


1 channel DALI Control Drive to control up to 16mt. of MONOCHROMATIC SLIMBAR. Without control panel. IP 65 protection rating. Version with 52V output.
