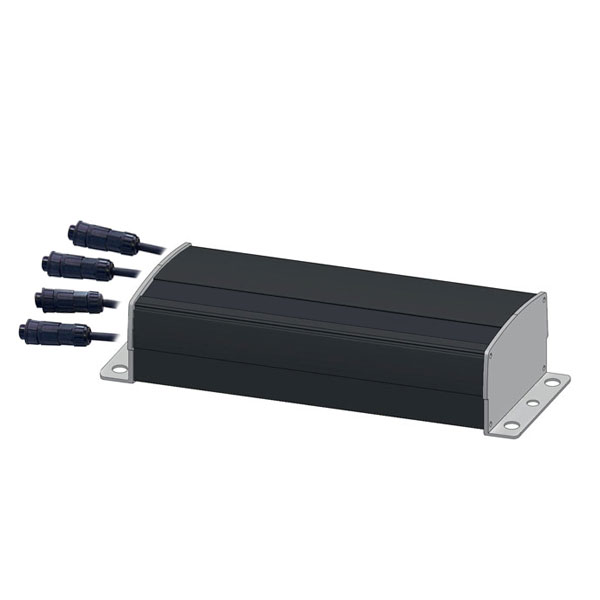

SB/P PILOT MAX M DALI (it.525480)
1 channel DALI Control Drive to control up to 16mt. of MONOCHROMATIC SLIMBAR. Without control panel. IP 65 protection rating. Voltage 48V.
Specifications
| Connections | |
|---|---|
| Connectors and cables | DMX OUT signal: cable 0,3mt. + 4pin connectors IP67 (female) |
| Control | |
|---|---|
| Control type | DALI DT6 |
| Output | n.4 x 48V constant voltage output |
| Functions and Setup | |
|---|---|
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Output voltage | 48V |
| Power max (W) | 350 |
| Current | 1,5A@230VAC |
| Physical | |
|---|---|
| IP protection rating | 65 |
| Sizes l x p x h (mm) | 390x150x85 |
| Weight (Kgs) | 2,6 |
| Product Category | Controller |
