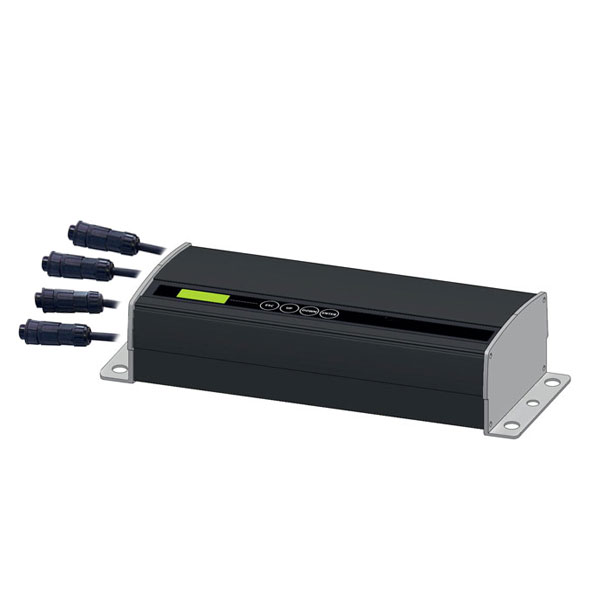

SB/P PILOT MAX RGBW-M (it.520520)

SB/P PILOT MAX RGBW-M (it.520520)

https://www.studiodue.com/web/image/product.template/2349/image_1920?unique=5a91a4b

4 channels DMX Control Drive to control up to 8mt. of RGBW SLIMBAR or 16mt. of MONOCHROMATIC SLIMBAR. Version with control panel. IP 65 protection rating. Version with 52V output.

Not Available For Sale

  • Connectors and cables
  • Control type
  • Output
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Output voltage
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Product Category

This combination does not exist.

Connectors and cables DMX OUT signal: cable 0,3mt. + 4pin connectors IP67 (female)
Control type DMX - RDM
Output n.4 x 52V constant voltage output
Functions Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS + touch control panel
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 350
Current 1,5A@230VAC
Output voltage 52V
IP protection rating 65
Sizes l x p x h (mm) 390x150x85
Weight (Kgs) 2,6
Product Category Controller
Contact Us


4 channels DMX Control Drive to control up to 8mt. of RGBW SLIMBAR or 16mt. of MONOCHROMATIC SLIMBAR. Version with control panel. IP 65 protection rating. Version with 52V output.
