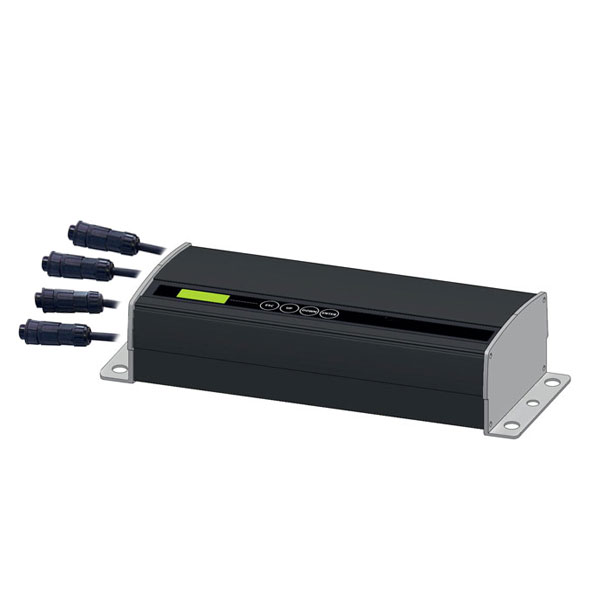

SB/P PILOT MAX RGBW-M (it.520480)

SB/P PILOT MAX RGBW-M (it.520480)

https://www.studiodue.com/web/image/product.template/2367/image_1920?unique=5a91a4b

4 channels DMX Control Drive to control up to 8mt. of RGBW SLIMBAR or 16mt. of MONOCHROMATIC SLIMBAR. With control panel. IP 65 protection rating. Voltage 48V.

Not Available For Sale

  • Connectors and cables
  • Control type
  • Output
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Output voltage
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Product Category

This combination does not exist.

Connectors and cables DMX OUT signal: cable 0,3mt. + 4pin connectors IP67 (female)
Control type DMX - RDM
Output n.4 x 48V constant voltage output
Functions Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS + touch control panel
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 350
Current 1,5A@230VAC
Output voltage 48V
IP protection rating 65
Sizes l x p x h (mm) 390x150x85
Weight (Kgs) 2,6
Product Category Controller
Contact Us


4 channels DMX Control Drive to control up to 8mt. of RGBW SLIMBAR or 16mt. of MONOCHROMATIC SLIMBAR. With control panel. IP 65 protection rating. Voltage 48V.
