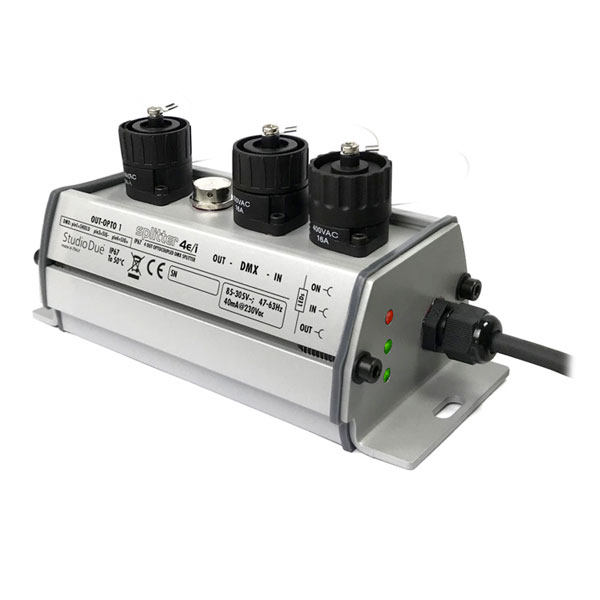

SPLITTER 1 e/i IP67 (it. 500161)

SPLITTER 1 e/i IP67 (it. 500161)

https://www.studiodue.com/web/image/product.template/1528/image_1920?unique=5a91a4b

Duplication IN/OUT 4PIN connector.
Regeneration and amplification of the DMX signal.
N.1 output signal opto-isolated from the input signal.
World wide power supply range (85-305VAC).
Absorption 4W max.
Line protections on the signal and on the main.
IP rate: IP67
Temperature range: -20°C ... +45°C

Not Available For Sale

  • Output
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Product Category

This combination does not exist.

Output n.1 output signal opto-isolated from the input signal
IP protection rating 67
Operating temperature -20°C +45°C
Sizes l x p x h (mm) 216 x 127 x 44
Product Category Controller
