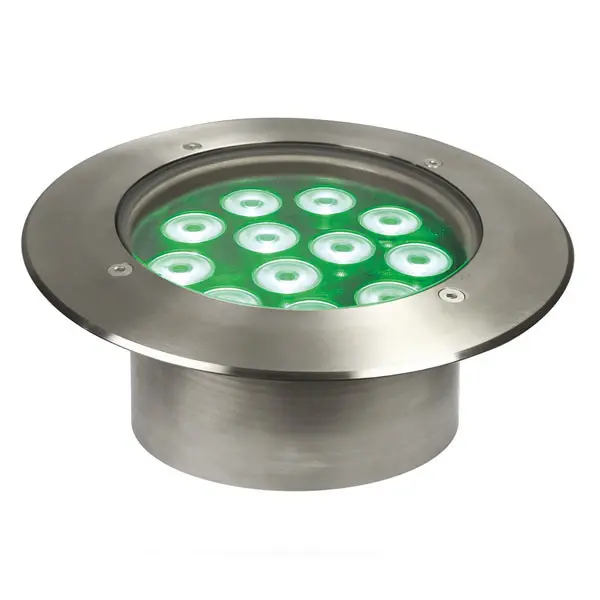

TERRA PLUS SUB 48V RGBW (art. 261310)

https://www.studiodue.com/web/image/product.template/4971/image_1920?unique=a9ed9a5

A range of professional IP68 low-voltage inground lighting fixtures, made entirely from AISI 316 stainless steel, specifically designed for permanent underwater installation. Ideal for architectural fountains, swimming pools, water features and marine environments, it combines high-performance optics with exceptional durability.






Specifications

Lighting source
LED type RGBW5050MULTICHIP
Number of LEDs 12
LED expected lifetime (hrs) 50000
Lumen source (lm) 4150
Red lumen (lm) 750
Green lumen (lm) 1800
Blu lumen (lm) 250
White lumen (lm) 1600
Optics
Lenses , 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H07 0,6mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
Control
Control type DMX - RDM
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 10ch - 9ch - 5ch - 4ch
Setup RDM/DRS
Power supply
Power max (W) 40
Input range 48VDC
Current 0,8A@48VDC
Physical
Materials Ultra clear 12mm tempered glass, PMMA lenses, All in stainless steel AISI316
IP protection rating 68
IK grade protection 08
Weight (Kgs) 5,7
