POB 230V

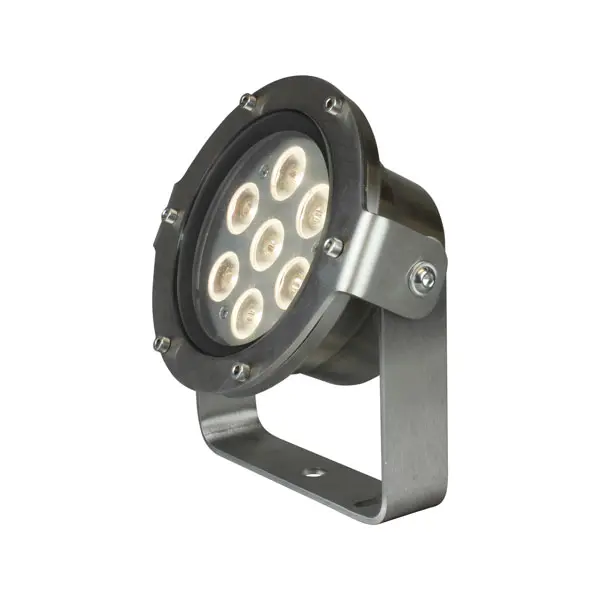

ARIA TL7 POB M DIM (it. 261110)
The new professional lighting range specifically engineered for permanent underwater installation. Designed for architectural fountains, pools, water features and marine environments, Aqua combines high-performance optics with outstanding durability. 230V version, entirely made of AISI316 steel.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 7 |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 1800 |
| CRI | >70 (on request >80, >90) |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | 1.5mt 3x0.75mm power cable, 1.5mt 2x0.35mm+shield DMX signal cable |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| DMX channels | 3ch - 1ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 15 |
| Inrush current | 40A@230V |
| Current | 60mA@230VAC |
| Physical | |
|---|---|
| Materials | Ultra clear 10mm tempered glass, PMMA lenses, All in stainless steel AISI316 |
| Operating temperature | -30°C +45°C |
| IP protection rating | 68 |
| Marine Grade treatment | Marine grade treatment |
| Weight (Kgs) | 1,4 |
| Colour finishing | AISI 316 brushed |
