POB 230V

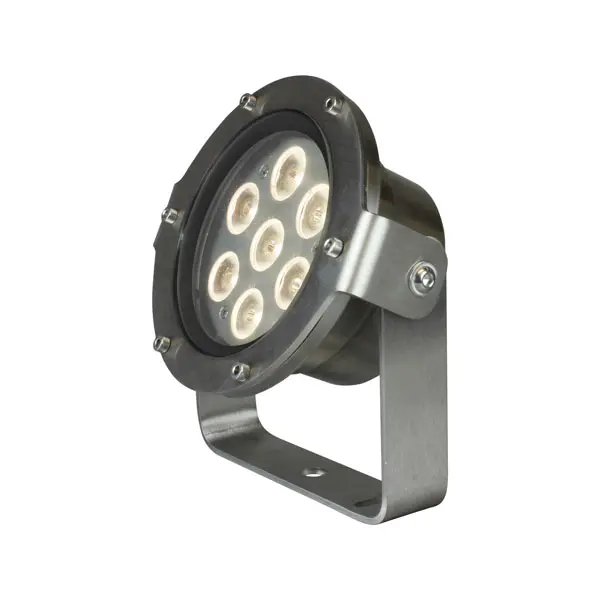

ARIA TL7 POB M PLUG-IN (it. 261100)
A range of professional 230V lighting fixtures specifically designed for outdoor installations in high-humidity environments IP68 (not for submersion) with on board power supply (POB). Entirely made of AISI 316 stainless steel.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 7 |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 1800 |
| CRI | >70 (on request >80, >90) |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | 1.5mt 3x0.75mm cable |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 15 |
| Inrush current | 40A@230V |
| Current | 60mA@230VAC |
| Physical | |
|---|---|
| Materials | Ultra clear 10mm tempered glass, PMMA lenses, All in stainless steel AISI316 |
| Operating temperature | -30°C +45°C |
| Weight (Kgs) | 1,4 |
| Colour finishing | AISI 316 brushed |
| IP protection rating | 68 |
| Optional/Accessories | |
|---|---|
| _MARINE GRADE TREATMENT (art.900546) | Marine grade treatment |
