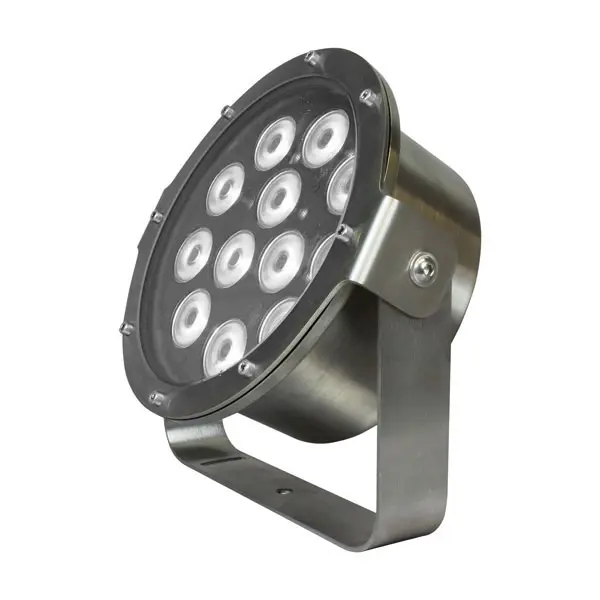

AQUA PLUS SUB 48V M DIM (it. 261040)
New professional lighting range, specifically designed for permanent underwater installation. Designed for architectural fountains, swimming pools, water features and marine environments, Aqua combines high-performance optics with exceptional durability. Low-voltage version for submersion (IP68), made entirely from AISI 316 stainless steel.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen source (lm) | 6000 |
| Number of LEDs | 12 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x30°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 0,6mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 3ch - 1ch |
| Power supply | |
|---|---|
| Input range | 48VDC |
| Power max (W) | 36 |
| Current | 0,8A@48VDC |
| Physical | |
|---|---|
| Materials | Ultra clear 12mm tempered glass, PMMA lenses, All in stainless steel AISI316 |
| IP protection rating | 68 |
| IK grade protection | 08 |
| Weight (Kgs) | 5,7 |
| Sizes l x p x h (mm) | 260 x 100 x260 |
