External PSU

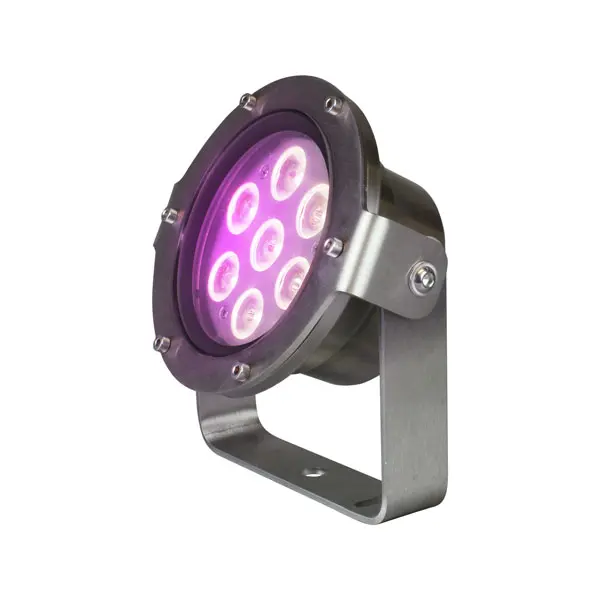

AQUA TL7 24V RGBW (it. 260840)
The new professional lighting range specifically engineered for permanent underwater installation. Designed for architectural fountains, pools, water features and marine environments, Aqua combines high-performance optics with outstanding durability.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW multi-chip with white 4000K |
| Number of LEDs | 7 |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 890 |
| Red lumen (lm) | 225 |
| Green lumen (lm) | 340 |
| Blu lumen (lm) | 130 |
| White lumen (lm) | 330 |
| CRI | >80 |
| Optics | |
|---|---|
| Lenses | 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | 1.5mt 3x0.75mm power cable, 1.5mt 2x0.35mm+shield DMX signal cable |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 9ch - 5ch - 4ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 24VDC |
| Power max (W) | 13 |
| Current | 600mA@24VDC |
| Physical | |
|---|---|
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All in stainless steel AISI316 |
| Operating temperature | -30°C +45°C |
| IP protection rating | 68 |
| Marine Grade treatment | Yes |
| Weight (Kgs) | 2 |
| Colour finishing | AISI 316 brushed |
