External PSU

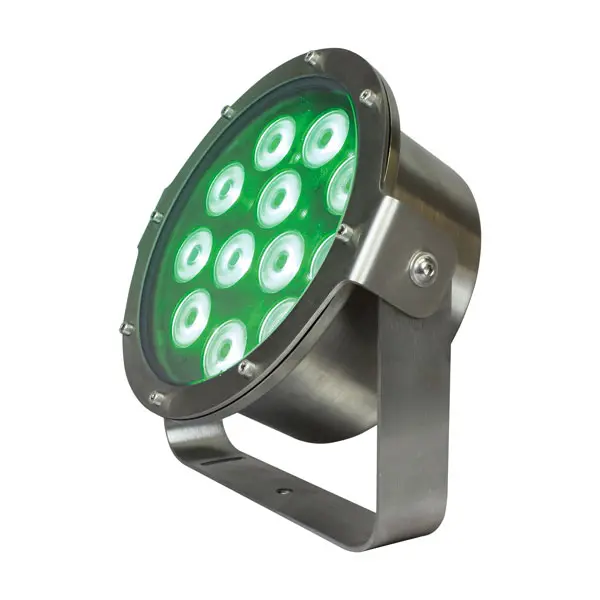

AQUA PLUS SUB 48V RGBW (it. 260740)
The new professional lighting range specifically engineered for permanent underwater installation. Designed for architectural fountains, pools, water features and marine environments, Aqua combines high-performance optics with outstanding durability. Low voltage version (IP68), entirely made of AISI316 steel.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| LED expected lifetime (hrs) | 50000 |
| Red lumen (lm) | 750 |
| Green lumen (lm) | 1800 |
| Blu lumen (lm) | 250 |
| White lumen (lm) | 1600 |
| Number of LEDs | 12 |
| Lumen source (lm) | 4150 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 0,6mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2900K to 13000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 10ch - 9ch - 5ch - 4ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Power max (W) | 40 |
| Input range | 48VDC |
| Current | 0,8A@48VDC |
| Physical | |
|---|---|
| Materials | Ultra clear 12mm tempered glass, All in stainless steel AISI316 |
| IP protection rating | 68 |
| IK grade protection | 08 |
| Weight (Kgs) | 5,7 |
| Sizes l x p x h (mm) | 260 x 100 x260 |
