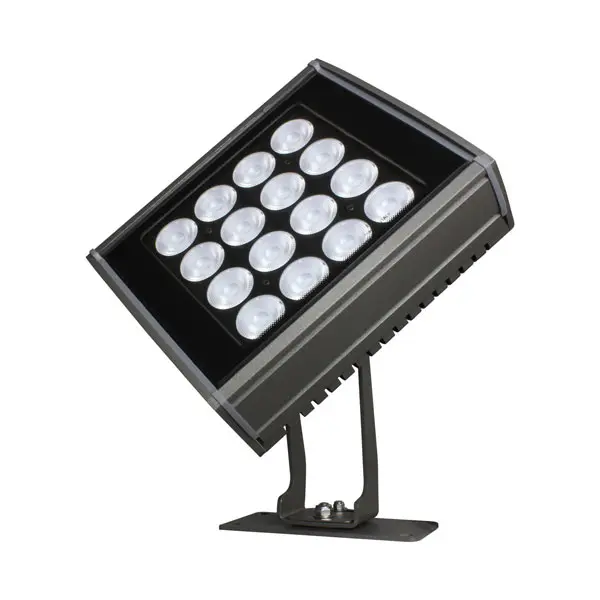

PIVOT M DIM (it.260610)

https://www.studiodue.com/web/image/product.template/4725/image_1920?unique=13b610b

This architectural lighting fixture is characterised by clean, angular lines and a compact design, created to blend seamlessly into contemporary architecture whilst maintaining a strong visual identity. It stands out for its unique adjustability, thanks to a bracket designed to ensure smooth and precise adjustment of the orientation.






Specifications

Lighting source
LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 16
Lumen source (lm) 7000
Lumen delivered (lm) 6600
Optics
Lenses 4° , 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables MAINS 1.5mt 3x0.75mm cable
Connectors and cables DMX DMX signal: IN/OUT cable 0,3mt. + 3pin M14 connectors IP67 (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
DMX channels 3ch - 1ch
Setup RDM/DRS
Power supply
Input range 180 - 240 VAC; 47/63 Hz
Power max (W) 45
Current 0,19A@230VAC
Physical
Marine Grade treatment Standard finish, Marine grade treatment
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Operating temperature -30°C +45°C
IP protection rating 67
