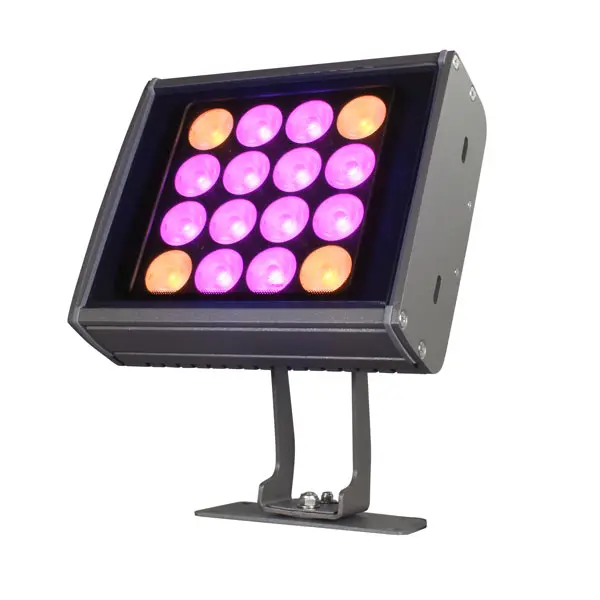

PIVOT RGBW+A (it. 260510)

PIVOT RGBW+A (it. 260510)

Is a family of architectural luminaires defined by its clean, angular form and compact design, created to integrate naturally into contemporary architecture while maintaining a strong visual identity.

Specifications

Lighting source
LED type	RGBW+A
Number of LEDs	12 RGBW + 4 PC-Amber
LED expected lifetime (hrs)	50000
Lumen source (lm)	6200
Red lumen (lm)	1300
Green lumen (lm)	2200
Blu lumen (lm)	500
White lumen (lm)	1900
Amber lumen (lm)	800

Optics
Lenses	8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional)	None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical

Connections
Connettori e cavi (optional)	Cable: type and length (optional)
Connectors and cables MAINS	1.5mt 3x0.75mm cable
Connectors and cables DMX	DMX signal: IN/OUT cable 0,3mt. + 3pin M14 connectors IP67 (male-female)

Control
Control type	DMX - RDM, DMX - RDM + Wireless (on request)

Functions and Setup
Functions	RDM/DRS, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels	10ch - 7ch - 6ch - 5ch
Setup	RDM/DRS

Power supply
Input range	180 - 240 VAC; 47/63 Hz
Power max (W)	55
Current	0,24A@230VAC

Physical
Marine Grade treatment	None, Yes
Colour finishing	Metal grey 7011 (standard), Black RAL 9005 (optional), Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Materials	Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
IP protection rating	67
Tilt	Any position
IK grade protection	07
