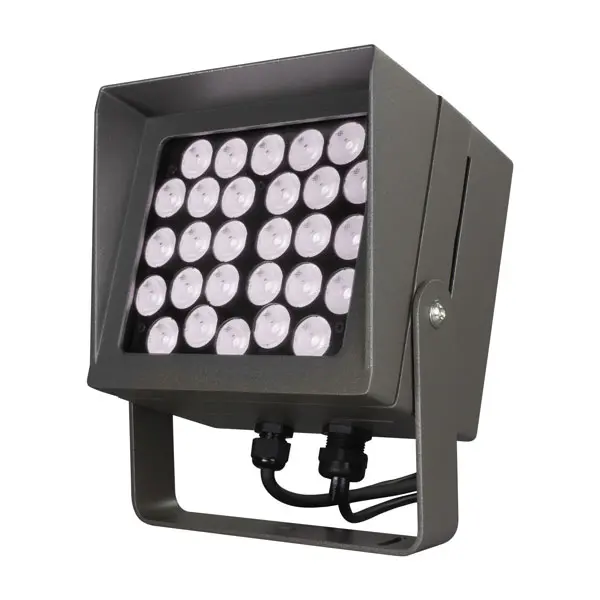

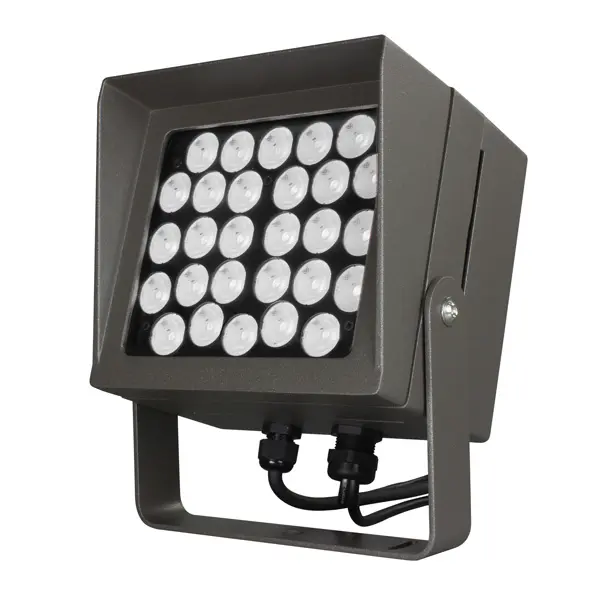

QUBIQ 28 M DIM (it.260310)
Is an architectural lighting family defined by its pure square geometry and compact, solid design. The clean cubic form creates a strong visual identity while allowing seamless integration into contemporary architectural environments. The square front layout of the 28 Monochromatic LEDs mirrors the shape of the fixture, reinforcing the geometric concept and delivering precise, controlled illumination. This balance between form and light distribution makes QubiQ ideal for façades, architectural accents, and landscape elements. Compact, robust, and architecturally expressive, QubiQ transforms a simple square into a distinctive lighting element that enhances the structure it illuminates.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 5000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 28 |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 7000 |
| Lumen delivered (lm) | 4390 |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables (optional) | Cable: type and length (optional) |
| Connectors and cables MAINS | 1.5mt 3x0.75mm cable |
| Connectors and cables DMX | DMX signal: IN/OUT cable 0,3mt. + 3pin M14 connectors IP67 (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| DMX channels | 3ch - 1ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 44 |
| Current | 0,19A@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | Standard finish, Marine grade treatment |
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| IP protection rating | 66 |
| Sizes l x p x h (mm) | 185 x 135 x 215 |
| Tilt | 360° |
| Weight (Kgs) | 2,7 |
| IK grade protection | 07 |
| Operating temperature | -30°C +45°C, -30°C +45°C |
