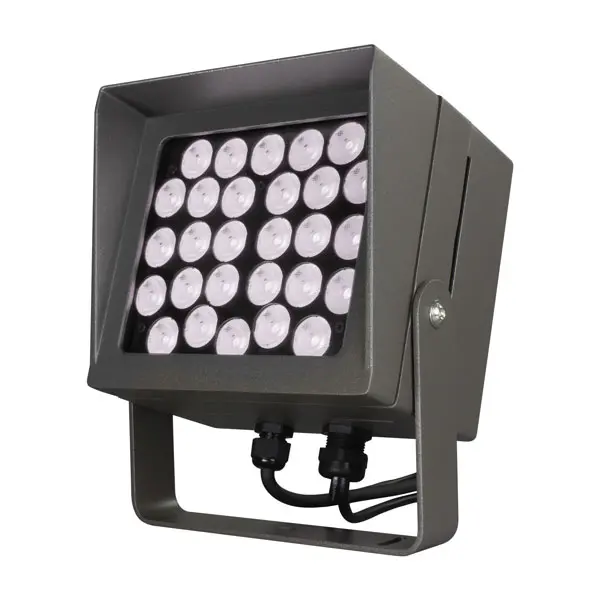

QUBIQ 28 M PLUG-IN (it.260300)

QUBIQ 28 M PLUG-IN (it.260300)

https://www.studiodue.com/web/image/product.template/4937/image_1920?unique=dc1059b

Is an architectural lighting family defined by its pure square geometry and compact, solid design. The clean cubic form creates a strong visual identity while allowing seamless integration into contemporary architectural environments. The square front layout of the 28 Monochromatic LEDs mirrors the shape of the fixture, reinforcing the geometric concept and delivering precise, controlled illumination. This balance between form and light distribution makes QubiQ ideal for façades, architectural accents, and landscape elements. Compact, robust, and architecturally expressive, QubiQ transforms a simple square into a distinctive lighting element that enhances the structure it illuminates.






Specifications

Lighting source
LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 5000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 28
LED expected lifetime (hrs) 50000
Lumen source (lm) 7000
Lumen delivered (lm) 4390
Optics
Lenses 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables (optional) Cable: type and length (optional)
Connectors and cables MAINS 1.5mt 3x0.75mm cable
Control
Control type Plug-in
Power supply
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 44
Current 0,19A@230VAC
Physical
Marine Grade treatment Standard finish, Marine grade treatment
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
IP protection rating 66
Sizes l x p x h (mm) 185 x 135 x 215
Tilt 360°
Weight (Kgs) 2,7
IK grade protection 07
Operating temperature -30°C +45°C
