New!

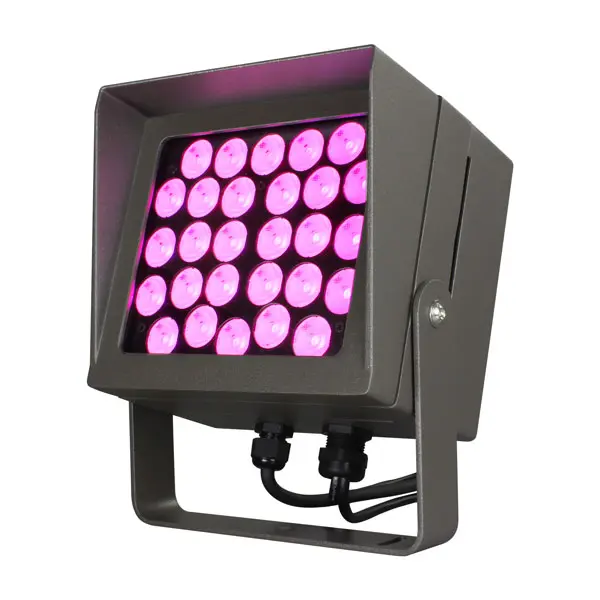

QUBIQ 28 RGBW (art.260110)
Small wash LED spot with 7 RGBW full color LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW |
| Red lumen (lm) | 900 |
| Green lumen (lm) | 1350 |
| Blu lumen (lm) | 520 |
| White lumen (lm) | 1300 |
| Lumen source (lm) | 3550 |
| Number of LEDs | 28 |
| LED expected lifetime (hrs) | 50000 |
| Optics | |
|---|---|
| Lenses | 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Connectors and cables MAINS | 1.5mt 3x0.75mm cable |
| Connectors and cables DMX | DMX signal: IN/OUT cable 0,3mt. + 3pin M14 connectors IP67 (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 9ch - 5ch - 4ch |
| Power supply | |
|---|---|
| Power max (W) | 49 |
| Input range | 100 - 277 VAC; 47/63 Hz |
| Current | 0,22A@230VAC |
| Physical | |
|---|---|
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Marine Grade treatment | None, Yes |
| IP protection rating | 66 |
| Tilt | 360° |
| Operating temperature | -30°C +45°C |
| IK grade protection | 07 |
