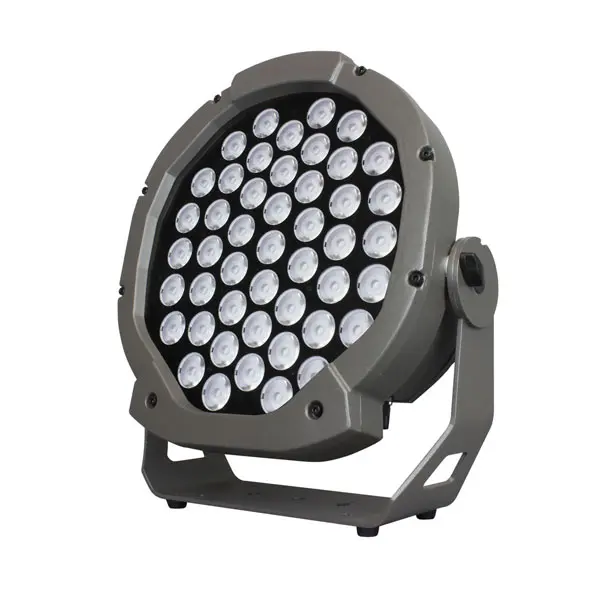

ARCHILED 400 M DALI (it.250710)
Hi Power wash LED Monochromatic fixture. 47 Hi-Power warm, neutral or cool white LEDs. On request: red, green, blue or amber. Touch control panel. IP 67 protection rating. Dimmable version RDM-DRS.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen source (lm) | 28000 |
| Lumen system (lm) | 18100 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DALI 2.0 (10...100% Dimmable) |
| Functions and Setup | |
|---|---|
| Functions | DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 90 - 305 VAC |
| Power max (W) | 200 |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| Operating temperature | -30°C +45°C |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 400 x 125 x 420 |
| Tilt | 135° |
| Weight (Kgs) | 11,5 |
| Others | |
|---|---|
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| AL400-AG (art.900012) | No, Yes |
| AL400-SN (art.900201) | No, Yes |
| AL400-CL (art.900300) | No, Yes |
