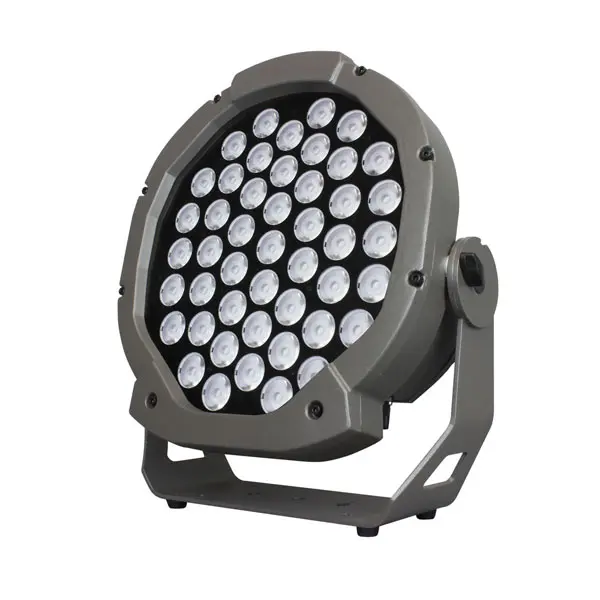

ARCHILED 400 M DIM (it.250610)

ARCHILED 400 M DIM (it.250610)

https://www.studiodue.com/web/image/product.template/4745/image_1920?unique=129f80b

Hi Power wash LED Monochromatic fixture. 47 Hi-Power warm, neutral or cool white LEDs. On request: red, green, blue or amber. Touch control panel. IP 67 protection rating. Dimmable version RDM-DRS.







Specifications

Lighting source
LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Lumen source (lm) 28000
Lumen delivered (lm) 18100
Optics
Lenses 4° , 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
Connectors and cables (optional) Cable: type and length (optional)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 3ch - 1ch
Setup RDM/DRS
Power supply
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 200
Physical
Colour finishing Grey RAL 7011 (standard), Black RAL 9005 (optional), Grey RAL 9006 (optional), White RAL 9010 (optional), Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 400 x 125 x 420
Tilt 135°
Weight (Kgs) 11,5
IP protection rating 67
Optional/Accessories
_MARINE GRADE TREATMENT (art.900546) -, Marine grade treatment
_CLAMP/C (art.900516) -, Clamp/c
_FFB (art.900517) -, FFB Omega
Others
SAFETY WIRE/C (art.900523) No, Yes
AL400-AG (art.900012) No, Yes
AL400-SN (art.900201) No, Yes
AL400-CL (art.900300) No, Yes
