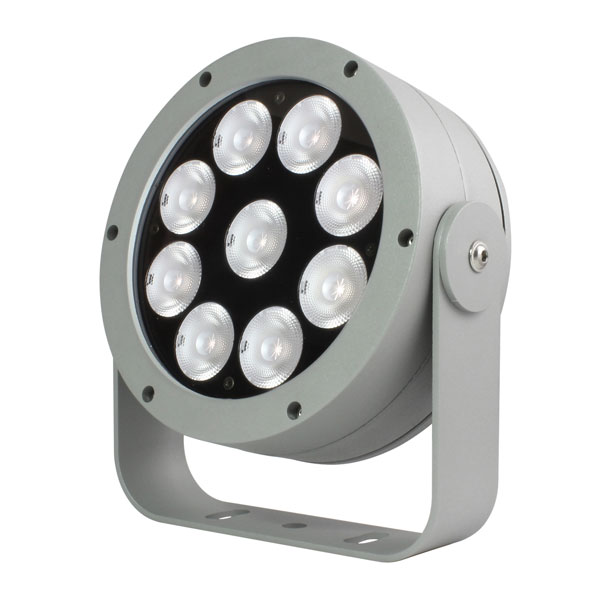

CLEVER SPOT 8 M RDM (it.250510)
Medium version of the CLEVER SPOT series with 9 High Power Monochromatic LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.
Medium version of the CLEVER SPOT series with 9 High Power Monochromatic LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 9 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 4000 |
| Lumen max output (lm) | 2930 |
| Optics | |
|---|---|
| Lenses | 5°, 10°x30°, 12°, 15°x55°, 24°, 30°x10°, 55°x15°, 36°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: cable 3x0,75mm, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| DMX channels | 3ch - 1ch |
| Power supply | |
|---|---|
| Input range | 120 - 240 VAC; 47/63 Hz |
| Power max (W) | 26 |
| Current | 0,13A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Tilt | 360° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 210 x 70 x 215 |
| Weight (Kgs) | 2,2 |
| Product Category | Spot |
| Others | |
|---|---|
| CLAMP/C (art.900516) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
| CLEVER SPOT2-SN (art.900206) | No, Yes |
| CLEVER SPOT2-CL (art.900306) | No, Yes |
