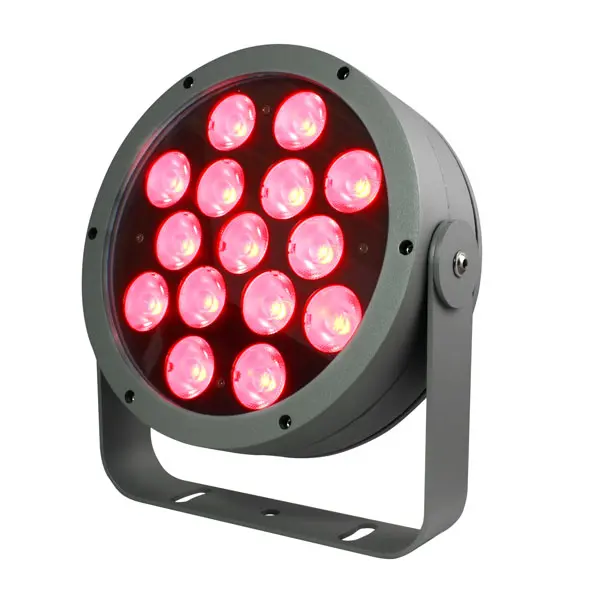

CLEVER SPOT 15 RGBW (it.250210)

https://www.studiodue.com/web/image/product.template/4525/image_1920?unique=e11d262

Large version of the CLEVER SPOT series with 14 RGBW LEDs (4000K). Remote configuration by DRS Setup device. IP 67 protection rating.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lumen max output (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • CRI
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • CLAMP/C (art.900516)
  • SAFETY WIRE/C (art.900523)
  • CLEVER SPOT1-SN (art.900207)
  • CLEVER SPOT1-CL (art.900307)

This combination does not exist.

LED type RGBW multi-chip with white 4000K
Number of LEDs 15
LED expected lifetime (hrs) 50000
Lumen max source (lm) 4300
Lumen max output (lm) 3550
Red lumen (lm) 960
Green lumen (lm) 1600
Blu lumen (lm) 240
White lumen (lm) 1750
CRI >80
Lenses 10°x30°, 12°, 15°x55°, 24°, 30°x10°, 55°x15°, 36°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: cable 3x0,75mm, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 5ch - 4ch
Input range 120 - 240 VAC; 47/63 Hz
Power max (W) 52
Current 0,23A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 360°
IP protection rating 67
IK grade protection 07
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 260 x 75 x 270
Weight (Kgs) 3,2
Product Category Spot
CLAMP/C (art.900516) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
CLEVER SPOT1-SN (art.900207) No, Yes
CLEVER SPOT1-CL (art.900307) No, Yes
Contact Us


Large version of the CLEVER SPOT series with 14 RGBW LEDs (4000K). Remote configuration by DRS Setup device. IP 67 protection rating.
