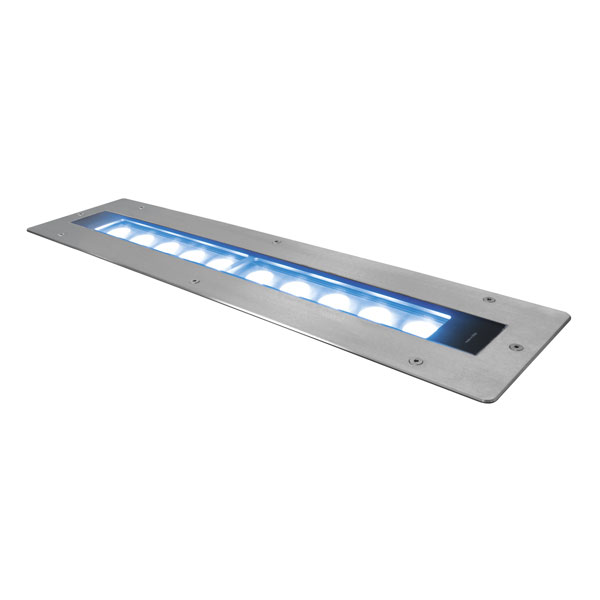

ARCHIBAR-i SL160 RGBW 60cm (it. 236113)

https://www.studiodue.com/web/image/product.template/3381/image_1920?unique=5a91a4b

IP 67 RGBW inground LED linear bar 60 cm long (on request). Profile in aluminium, 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Marine Grade treatment
  • Product Category
  • SLS-60 (art.900509)

This combination does not exist.

LED type RGBW TX-5050-10W
Number of LEDs 10
LED expected lifetime (hrs) 50000
Lumen max source (lm) 4600
Red lumen (lm) 1000
Green lumen (lm) 1800
Blu lumen (lm) 280
White lumen (lm) 1800
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
Functions RDM/DRS
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 47
Current 0,24A@230VAC
Materials Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 763 X 182 x 173 mm
Weight (Kgs) xxx 1
Mounting systems Inground
Product Category Inground
SLS-60 (art.900509) No, Yes
Contact Us


IP 67 RGBW inground LED linear bar 60 cm long (on request). Profile in aluminium, 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
