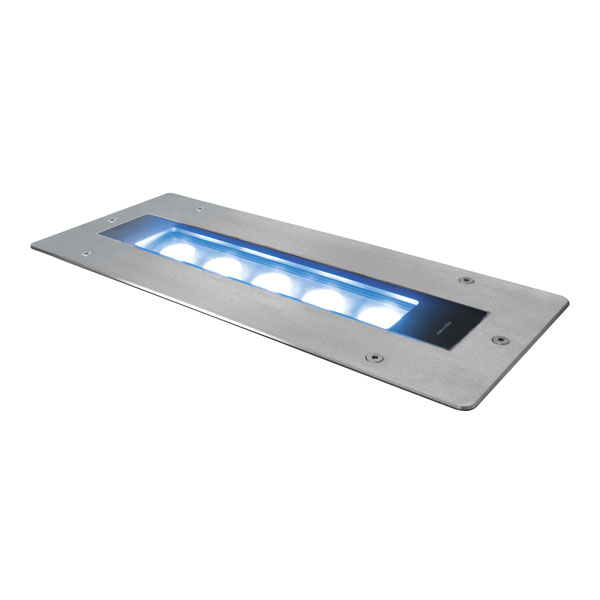

ARCHIBAR-i SL160 RGBW 30cm (it.236111)

https://www.studiodue.com/web/image/product.template/3382/image_1920?unique=5a91a4b

IP 67 RGBW inground LED linear bar 30 cm long (on request). Profile in aluminium , sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Marine Grade treatment
  • Product Category
  • SLS-30 (art.900510)

This combination does not exist.

LED type RGBW TX-5050-10W
Number of LEDs 5
LED expected lifetime (hrs) 50000
Lumen max source (lm) 2300
Red lumen (lm) 500
Green lumen (lm) 900
Blu lumen (lm) 140
White lumen (lm) 900
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 30
Current 0,13A@230VAC
Materials Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 450 x 182 x 173
Weight (Kgs) xxx 1
Mounting systems Inground
Product Category Inground
SLS-30 (art.900510) No, Yes
Contact Us


IP 67 RGBW inground LED linear bar 30 cm long (on request). Profile in aluminium , sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
