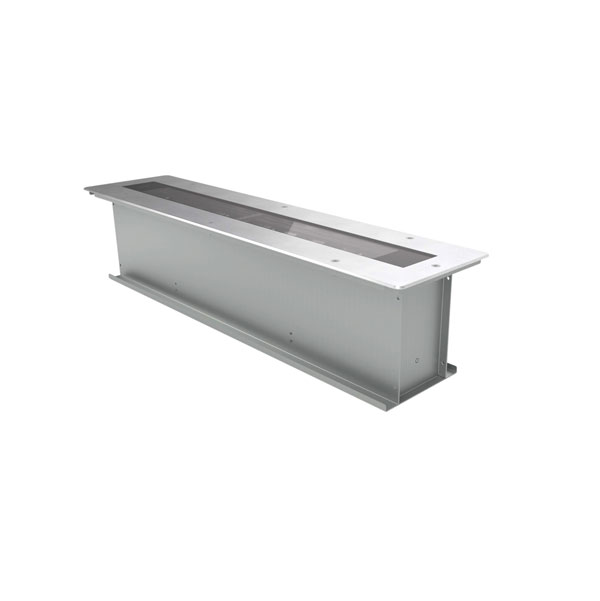

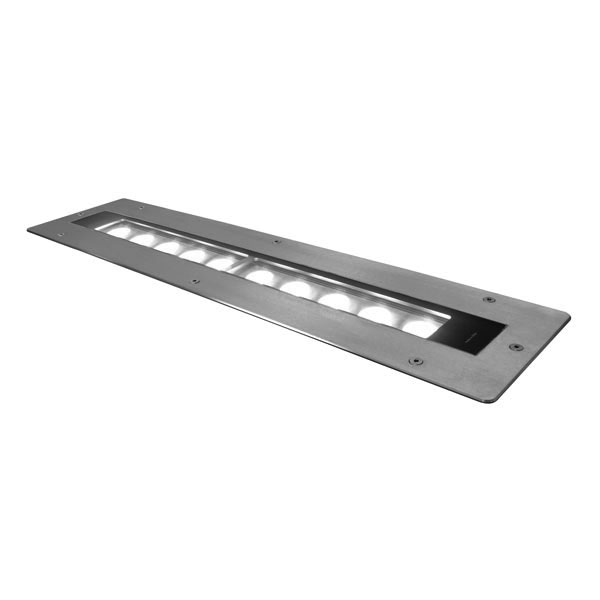

ARCHIBAR-i SL160 PLUG-IN M 60cm (it.236003)

https://www.studiodue.com/web/image/product.template/3390/image_1920?unique=5a91a4b

Linear bar LED inground monocromatica IP 67 lunga 60 cm (su richiesta). Profilo in alluminio, robusto vetro temprato da 12 mm di spessore, flangia in acciaio INOX AISI 304 satinato. Standard 90 cm. Versione PLUG-IN. Possibilità di adattare manualmente l’angolo luminoso a: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Marine Grade treatment
  • Product Category
  • SLS-60 (art.900509)

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 10
Lumen max source (lm) 5000
Lenses 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt
Control type Plug-in
Functions N/A
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 36
Current 0,15A@230VAC
Materials Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 763 x 182 x 173
Weight (Kgs) xxx 1
Mounting systems Inground
Product Category Inground
SLS-60 (art.900509) No, Yes
Contact Us


Linear bar LED inground monocromatica IP 67 lunga 60 cm (su richiesta). Profilo in alluminio, robusto vetro temprato da 12 mm di spessore, flangia in acciaio INOX AISI 304 satinato. Standard 90 cm. Versione PLUG-IN. Possibilità di adattare manualmente l’angolo luminoso a: 0°, 3°, 6°.
