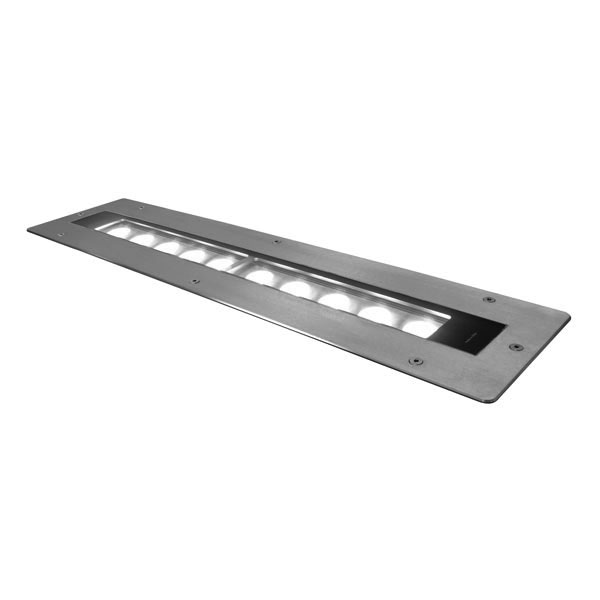

ARCHIBAR-i SL160 PLUG-IN M 60cm (it.236003)
Linear bar LED inground monocromatica IP 67 lunga 60 cm (su richiesta). Profilo in alluminio, robusto vetro temprato da 12 mm di spessore, flangia in acciaio INOX AISI 304 satinato. Standard 90 cm. Versione PLUG-IN. Possibilità di adattare manualmente l’angolo luminoso a: 0°, 3°, 6°.
Documents
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 10 |
| Lumen max source (lm) | 5000 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 1mt |
| Control | |
|---|---|
| Control type | Plug-in |
| Functions and Setup | |
|---|---|
| Functions | N/A |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 36 |
| Current | 0,15A@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Materials | Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange |
| Operating temperature | -20°C +40*C |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 763 x 182 x 173 |
| Mounting systems | Inground |
| Tilt | Manual 0° 3° 6° |
| Weight (Kgs) | xxx 1 |
| Product Category | Inground |
| IK grade protection | 10 |
| Others | |
|---|---|
| SLS-60 (art.900509) | No, Yes |
