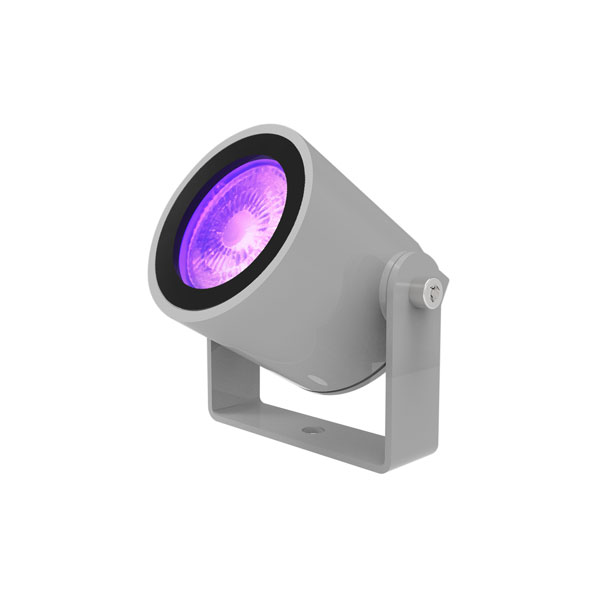

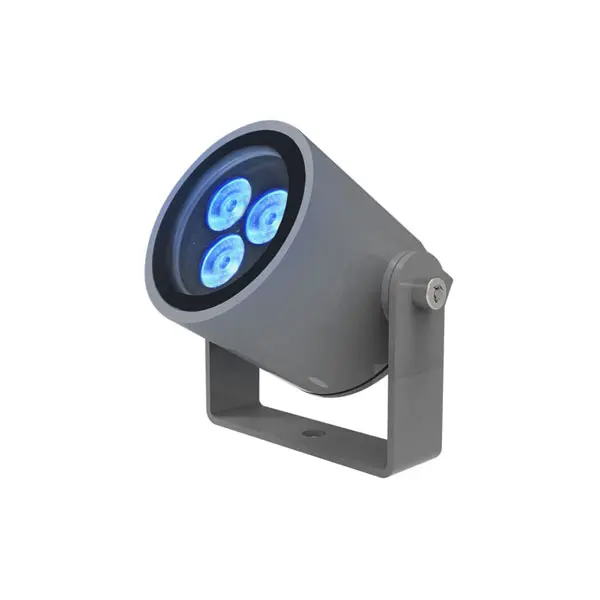

DOT POB RGBW connectors (it. 231110)

https://www.studiodue.com/web/image/product.template/2921/image_1920?unique=85d90bc

Small professional IP67 230V LED spotlight with on-board DMX and power supply (POB), born to create decorative effects and architectural installations. Version with hybrid cable and IN/OUT connectors.






Specifications

Lighting source
LED type RGBW
Number of LEDs 3
LED expected lifetime (hrs) 50000
Lumen source (lm) 475
Red lumen (lm) 56
Green lumen (lm) 112
Blu lumen (lm) 22
White lumen (lm) 160
CRI >80
Optics
Lenses 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Power cable 3x0.75mm 1,5mt, DMX signal IN/OUT 3pins IP67 connectors
Control
Control type DMX - RDM
Functions and Setup
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 9ch - 5ch - 4ch
Setup RDM/DRS
Power supply
Input range 100 - 305 VAC; 47/63Hz
Power max (W) 9
Current 40mA@230VAC
Inrush current 40A@230V
Physical
Marine Grade treatment None, Yes
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Operating temperature -30°C +45°C
IP protection rating 67
Sizes l x p x h (mm) 105x70x115
Mounting systems Surface
Tilt 270°
Weight (Kgs) 0.8
IK grade protection 08
