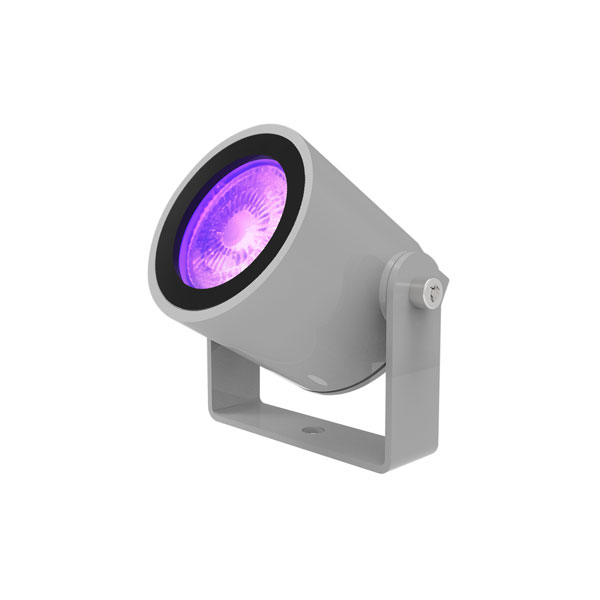

DOT POB RGBW connectors (it. 231110)
Small professional IP67 230V LED spotlight with on-board DMX and power supply (POB), born to create decorative effects and architectural installations. Version with hybrid cable and IN/OUT connectors.
| LED type | RGBW 20W FLAT |
| Number of LEDs | 1 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 320 |
| Red lumen (lm) | 56 |
| Green lumen (lm) | 112 |
| Blu lumen (lm) | 22 |
| White lumen (lm) | 160 |
| CRI | >80 |
| Lenses | 40°, 60° |
| Connectors and cables | Power cable 3x0.75mm 1,5mt, DMX signal IN/OUT 3pins IP67 connectors |
| Control type | DMX - RDM |
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 9ch - 5ch - 4ch |
| Input range | 90 - 305 VAC |
| Power max (W) | 5 |
| Current | 25mA@230VAC |
| Inrush current | 40A@230V |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Colour finishing | Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Marine Grade treatment | None, Yes |
| Tilt | 270° |
| IP protection rating | 67 |
| IK grade protection | 08 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 105x70x115 |
| Weight (Kgs) | 0.8 |
| Mounting systems | Surface |
| Product Category | Spot |
Small professional IP67 230V LED spotlight with on-board DMX and power supply (POB), born to create decorative effects and architectural installations. Version with hybrid cable and IN/OUT connectors.
