Product Description

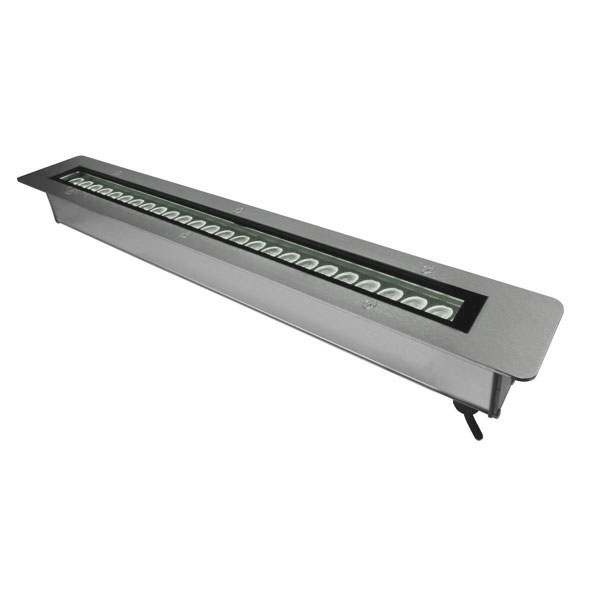

Compact IP 67 Monochromatic inground LED linear bar PLUG-IN version 60 cm long (on request). Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 3°.


Downloads
Technical specification
LED type
WHITE 2900K
WHITE 4000K
Number of LEDs
24 Mid Power
LED expected lifetime (hrs)
90000
Lumen MAX
3200
Lenses
10°
10°x30°
10°x55°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3x1mm cable H07 1mt
Input range
200 - 240 VAC; 47/63 Hz
Power (W)
24
Current
105mA@230VAC
Marine Grade treatment
None
Yes
IP protection rating
67
IK grade protection
09
Sizes l x p x h (mm)
715x84x70
Weight (Kgs)
2,6
Mounting systems
Inground
Colour finishing
None
Product Configurations
  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen MAX
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Input range
  • Power (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
