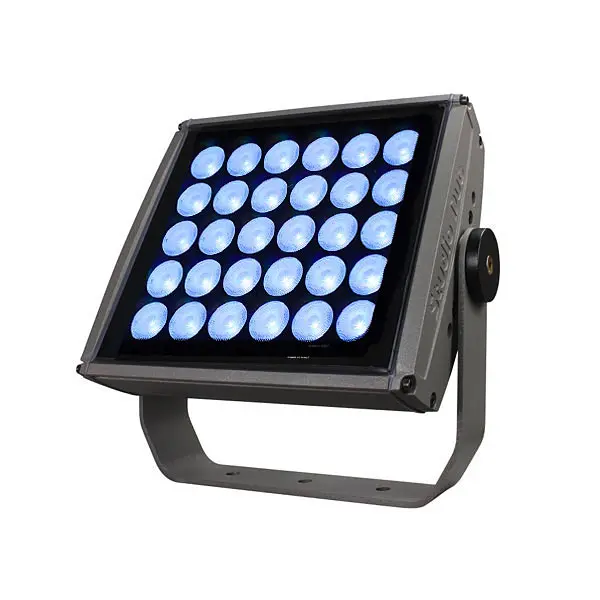

COMPACT 26 RGBW (it. 230110)

COMPACT 26 RGBW (it. 230110)

https://www.studiodue.com/web/image/product.template/2890/image_1920?unique=f523090

Compact long distance LED Lighting Hi Power RGBW IP67 colorchanger. 30 powerful RGBW LEDs , 38mm lenses






Specifications

Lighting source
LED type RGBW (8W)
Red lumen (lm) 2500
Green lumen (lm) 4400
Blu lumen (lm) 800
White lumen (lm) 4500
Number of LEDs 30
LED expected lifetime (hrs) 50000
Lumen source (lm) 11500
Optics
Lenses 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Power supply
Power max (W) 110
Input range 200 - 240 VAC; 47/63 Hz
Current 0,45A@230VAC
Power Factor PF>0,95@230VAC
Physical
Colour finishing Grey RAL 7011 (standard), Black RAL 9005 (optional), Grey RAL 9006 (optional), White RAL 9010 (optional), Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
_MARINE GRADE TREATMENT (art.900546) Standard finish, Marine grade treatment
Sizes l x p x h (mm) 356 x 120 x 320
Weight (Kgs) 7,5
IP protection rating 67
Others
_280-HC (art.900703) -, Honeycomb
_280LED-FROST (art.900410) -, Frost
_280-CL (art.900303) -, Cowl
_280-AG (art.900008) -, Anti glare
_280-BD (art.900108) -, Barn door
_280-SN (art.900205) -, Snoot
_CLAMP/C (art.900516) -, Clamp/c
_FFB (art.900517) -, FFB Omega
_SAFETY WIRE/C (art.900523) -, Safety wire
