COLORFLOW RGBW 100cm (it.230085)

https://www.studiodue.com/web/image/product.template/4505/image_1920?unique=303c3f8

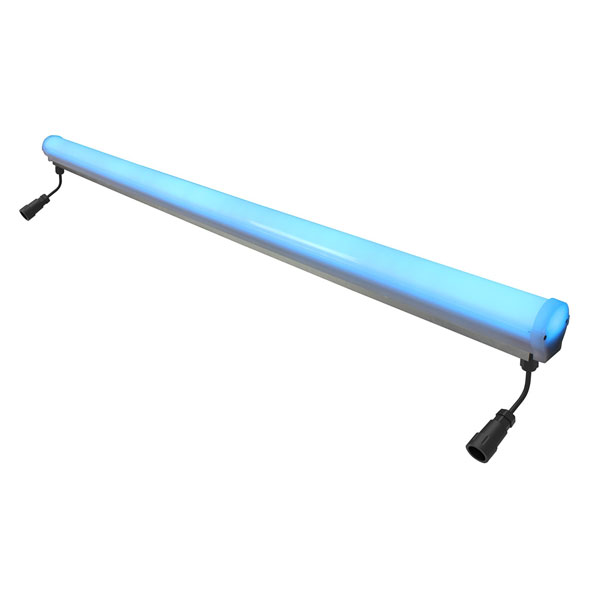

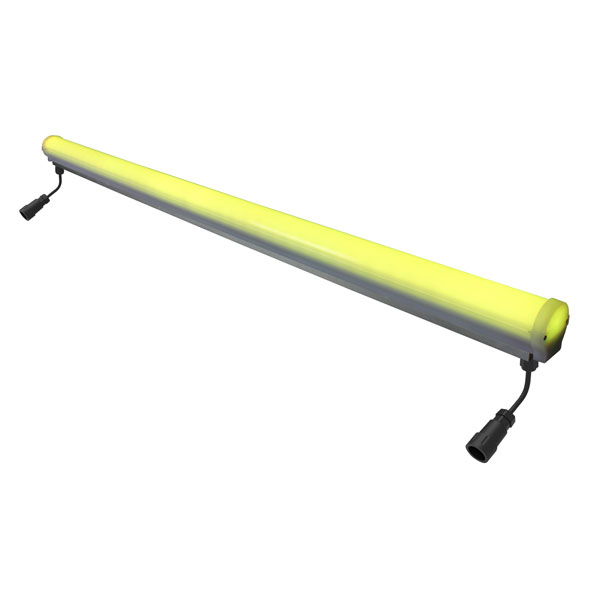

Ultra small form factor LED LINEAR TUBE with IP 67 rating protection 100cm long (standard). Suitable for architectural lighting, visual effects and light games. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 50 and 150cm.

Not Available For Sale

  • LED type
  • Red lumen (lm)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Control type
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • CF-AB (art.900500)

This combination does not exist.

Contact Us


Ultra small form factor LED LINEAR TUBE with IP 67 rating protection 100cm long (standard). Suitable for architectural lighting, visual effects and light games. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 50 and 150cm.

Specifications

Lighting source
LED type RGBW
Red lumen (lm) 380
Green lumen (lm) 440
Number of LEDs 44
Blu lumen (lm) 160
White lumen (lm) 560
Optics
Lenses 180°
Control
Control type DMX - RDM
Functions and Setup
Setup RDM/DRS
DMX channels 9ch - 5ch - 4ch
Power supply
Input range 48VDC
Power max (W) 30
Current 650mA@48VDC
Physical
IP protection rating 67
Sizes l x p x h (mm) 1010 x 46
Mounting systems Surface
Marine Grade treatment None
Weight (Kgs) 1,4
Product Category Linear Bar
Colour finishing None
Others
CF-AB (art.900500) No, Yes
