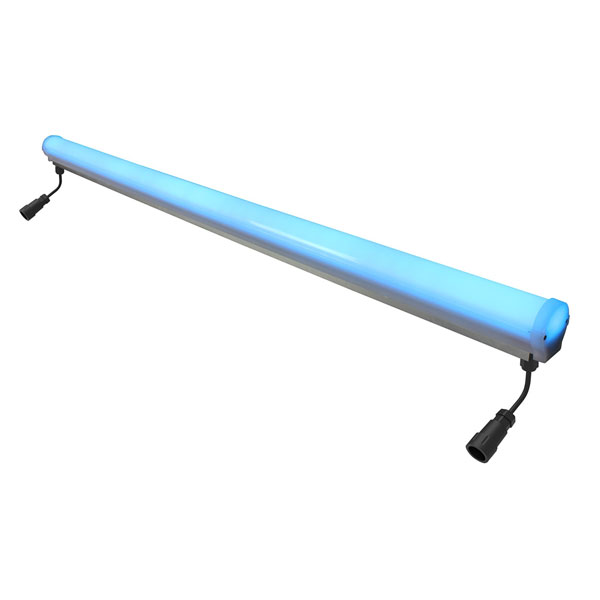

COLORFLOW RGBW 100cm (it.230085)

https://www.studiodue.com/web/image/product.template/4505/image_1920?unique=303c3f8

Ultra small form factor LED LINEAR TUBE with IP 67 rating protection 100cm long (standard). Suitable for architectural lighting, visual effects and light games. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 50 and 150cm.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Control type
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • CF-AB (art.900500)

This combination does not exist.

LED type RGBW
Number of LEDs 44
Red lumen (lm) 380
Green lumen (lm) 440
Blu lumen (lm) 160
White lumen (lm) 560
Lenses 180°
Control type DMX - RDM
Setup RDM/DRS
DMX channels 9ch - 5ch - 4ch
Input range 48VDC
Power max (W) 30
Current 650mA@48VDC
IP protection rating 67
Sizes l x p x h (mm) 1010 x 46
Weight (Kgs) 1,4
Mounting systems Surface
Colour finishing None
Marine Grade treatment None
Product Category Linear Bar
CF-AB (art.900500) No, Yes
Contact Us


Ultra small form factor LED LINEAR TUBE with IP 67 rating protection 100cm long (standard). Suitable for architectural lighting, visual effects and light games. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 50 and 150cm.
