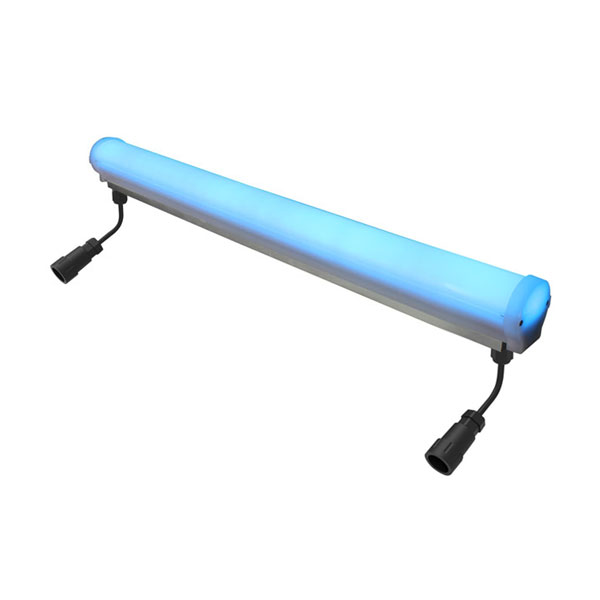

COLORFLOW RGBW 50cm (it.230082)
Ultra small form factor LED LINEAR TUBE 50 cm. long with IP 67 rating protection. Suitable for architectural lighting, visual effects and light games. Standard 100cm. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 150cm.
Documents
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW |
| Number of LEDs | 22 |
| Red lumen (lm) | 190 |
| Green lumen (lm) | 220 |
| Blu lumen (lm) | 80 |
| White lumen (lm) | 280 |
| Optics | |
|---|---|
| Lenses | 180° |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| DMX channels | 9ch - 5ch - 4ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 48VDC |
| Power max (W) | 15 |
| Current | 350mA@48VDC |
| Physical | |
|---|---|
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 510 x 46 |
| Mounting systems | Surface |
| Marine Grade treatment | None |
| Weight (Kgs) | 0,7 |
| Product Category | Linear Bar |
| Colour finishing | None |
| Others | |
|---|---|
| CF-AB (art.900500) | No, Yes |
