Product Description

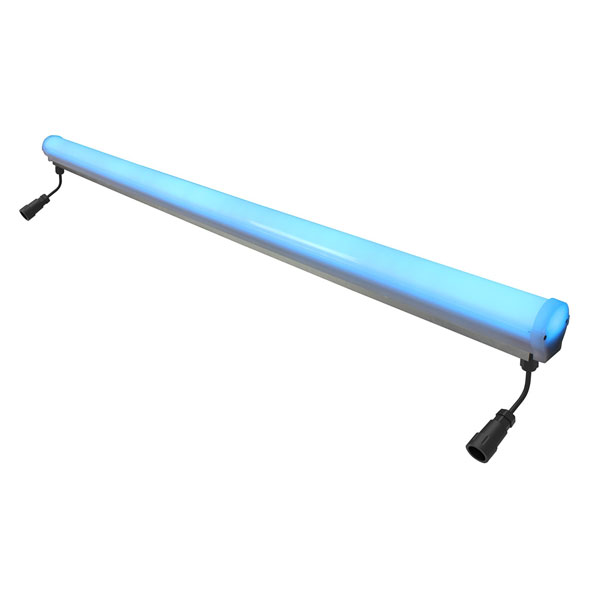

Ultra small form factor LED LINEAR TUBE with IP 67 rating protection 50cm long. Suitable for architectural lighting, visual effects and light games. Standard 100cm. Aluminium structure and PMMA tube. To drive COLORFLOW RGBW use an external 48VDC Power Supply. On request: adjustable bracket -/+78°. On request 150cm.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW
|
Number of LEDs
|
44
|
Red lumen (lm)
|
380
|
Green lumen (lm)
|
440
|
Blu lumen (lm)
|
160
|
White lumen (lm)
|
560
|
| Optics | |
Lenses
|
180°
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Setup
|
RDM/DRS
|
DMX channels
|
9ch - 5ch - 4ch
|
| Power supply | |
Input range
|
48VDC
|
Power max (W)
|
30
|
Current
|
650mA@48VDC
|
| Physical | |
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
1510 x 46
|
Weight (Kgs)
|
1,4
|
Mounting systems
|
Surface
|
Colour finishing
|
None
|
Marine Grade treatment
|
None
|
