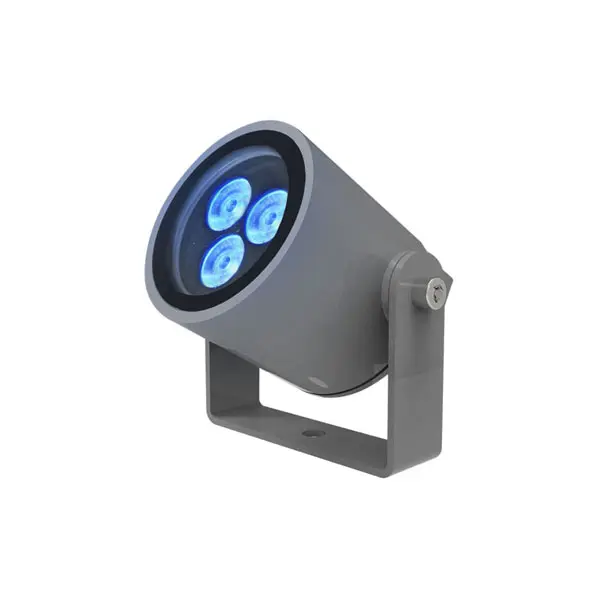

DOT 24V RGBW connectors (it. 221140)

DOT 24V RGBW connectors (it. 221140)

https://www.studiodue.com/web/image/product.template/2920/image_1920?unique=003936c

Piccolo faretto LED professionale IP67 a 24V con DMX a bordo e alimentazione esterna, nato per creare effetti decorativi e installazioni architettoniche. Versione con cavo ibrido e connettori IN/OUT.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • CRI
  • Lenses
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW20W FLAT
Number of LEDs 1
LED expected lifetime (hrs) 50000
Lumen max source (lm) 320
Red lumen (lm) 56
Green lumen (lm) 112
Blu lumen (lm) 22
White lumen (lm) 160
CRI >80
Lenses 40°, 60°
Connectors and cables (IN/OUT ) DMX signal + power connectors
Control type DMX - RDM
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 5ch - 4ch
Input range 24VDC (8VDC-30VDC)
Power max (W) 5
Current 220mA@24VDC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 270°
IP protection rating 67
IK grade protection 08
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 105x70x115
Weight (Kgs) 0,7
Mounting systems Surface
Product Category Spot
