CLEVER SPOT 4 RGBW (it.220810)

CLEVER SPOT 4 RGBW (it.220810)

https://www.studiodue.com/web/image/product.template/1841/image_1920?unique=dd17e0f

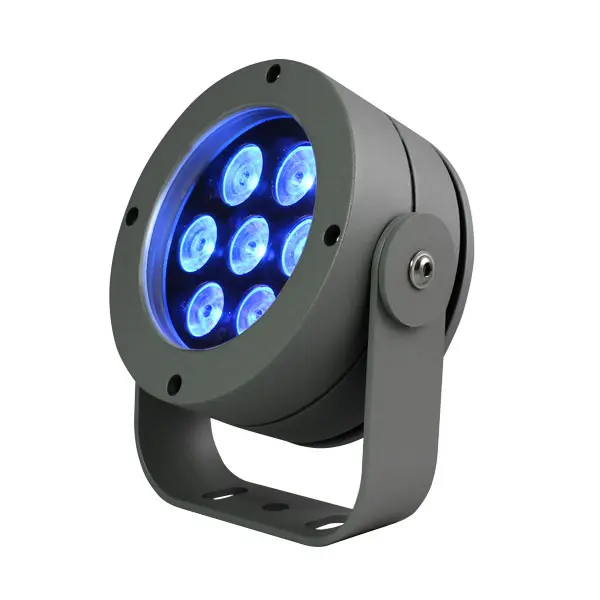

Small wash LED spot with 7 RGBW full color LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.

Not Available For Sale

  • Colour finishing
  • LED type
  • Lenses
  • Mounting systems
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Power max (W)
  • Input range
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • IP protection rating
  • Control type
  • Functions
  • Product Category
  • Lumen max source (lm)
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Inrush current
  • Setup
  • Connectors and cables
  • DMX channels
  • Materials
  • Current
  • Tilt
  • Operating temperature
  • Marine Grade treatment
  • IK grade protection
  • CRI
  • Filters (optional)
  • Connettori e cavi (optional)
  • CLEVER SPOT-SN (art.900203)
  • CLAMP/C (art.900516)
  • SAFETY WIRE/C (art.900523)
  • CLEVER SPOT-CL (art.900305)

This combination does not exist.

LED type RGBW multi-chip with white 4000K
Red lumen (lm) 250
Green lumen (lm) 370
Blu lumen (lm) 150
White lumen (lm) 420
Lumen max source (lm) 1040
Number of LEDs 7
LED expected lifetime (hrs) 50000
CRI >80
Lenses 10°x30°, 12°, 24°, 30°x10°, 36°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: cable 3x0,75mm, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 5ch - 4ch
Power max (W) 15
Input range 120 - 240 VAC; 47/63 Hz
Inrush current 45A@230V
Current 0,1A@230VAC
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Mounting systems Surface, Truss (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Marine Grade treatment None, Yes
Sizes l x p x h (mm) 165 x 70 x 160
Weight (Kgs) 1,1
IP protection rating 67
Product Category Spot
Tilt 360°
Operating temperature -30°C +45°C
IK grade protection 07
CLEVER SPOT-SN (art.900203) No, Yes
CLAMP/C (art.900516) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
CLEVER SPOT-CL (art.900305) No, Yes
Contact Us


Small wash LED spot with 7 RGBW full color LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.
