Product Description

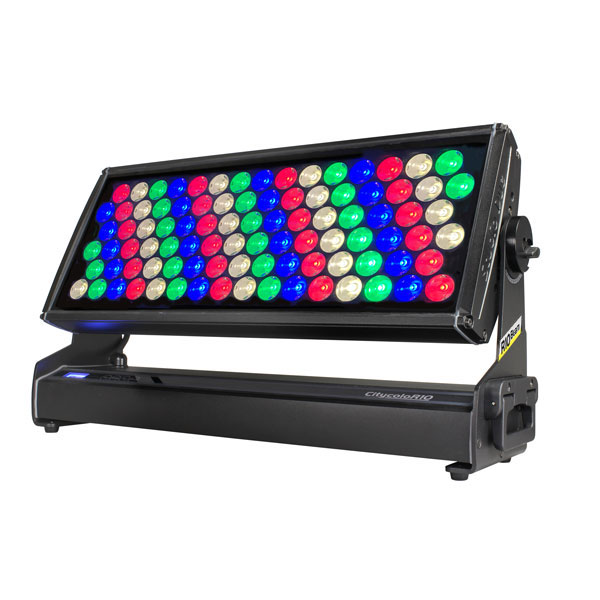

R10. Very high power long distance single LEDs color changer. IP 67 protection rating. Superb color mixing. Ultranarrow 4° projection, on request other optics. Great light output. Characterized by a modern and essential design, completely made of aluminum alloy.

Downloads

UM_CitycoloR10 series.pdf

datasheet CityColoR10 Beam art.220310.pdf

disegno CityColoR10 Beam art.220310.pdf

ART.220310 - CITYCOLOR10 BEAM.zip
Technical specification
Icon attribute
Icon attribute
Icon attribute
LED type
Single-chip LED R+G+B+W
Number of LEDs
93
LED expected lifetime (hrs)
50000
Lumen MAX
23000
Red lumen (lm)
4000
Green lumen (lm)
6000
Blu lumen (lm)
40W
White lumen (lm)
12000
Lenses
4° Ultra Narrow standard
15°
15°x30°
25°
40°
60°
Connectors and cables
Main Power: 3pin IP67 (male-female)
Main Power: connettore 4pin IP67 (maschio-femmina)
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS + touch control panel
DMX channels
10ch - 9ch - 4ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
330
Current
1,5A@230VAC
Power Factor
Active Power factor Corrector (PFC)
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
122°
IP protection rating
67
IK grade protection
07
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
735 x 185 x 385
Weight (Kgs)
19,7
LED Amber
None
Yes
LED 2700K White
None
Yes
LED 6500K White
None
Yes
Accessories - XLR-Powercon IP65 Connectors
None
Yes
Accessories - 6 fast-lock receptacles
None
Yes
A - FFB fast fixing bracket Omega
None
Yes
A - CLAMP professional in aluminium
None
Yes
A - Flight case CCR10 CASEx2
None
Yes
A - Anti glare CCR10-AG
None
Yes
A - Barn door CCR10-BD
None
Yes
