Product Description

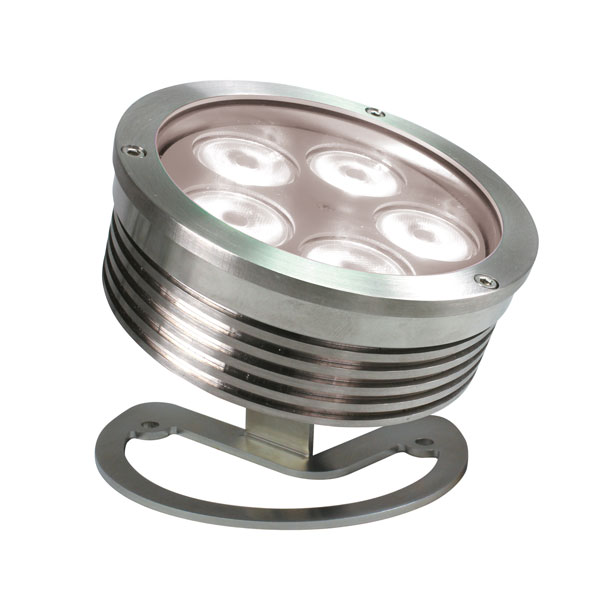

20V-48V version IP 67 stainless steel AISI 304 with bracket lighting fixture suitable for outdoor installations. It includes n.5 x 10W Monochromatic LEDs. Plug-In version.

Downloads

UM_Terra-Aria POB_all series.pdf
Technical specification
LED type
WHITE 2700K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
10
Lumen MAX
2500
Lenses
15°
15°x30°
25°
40°
60°
Filters
None
f 17° tilt
f34° tilt
f 60°
f 65°
f 100°
f 8°x 60°
Control type
Plug-in
Input range
20 - 48 VDC
Power (W)
16
IP protection rating
67
68 optional
Mounting systems
Surface
Truss (optional)
Dimensions d x h (mm)
134 x 115
Weight (Kgs)
2,7
Materials
Ultra clear 10mm tempered glass
Case
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
