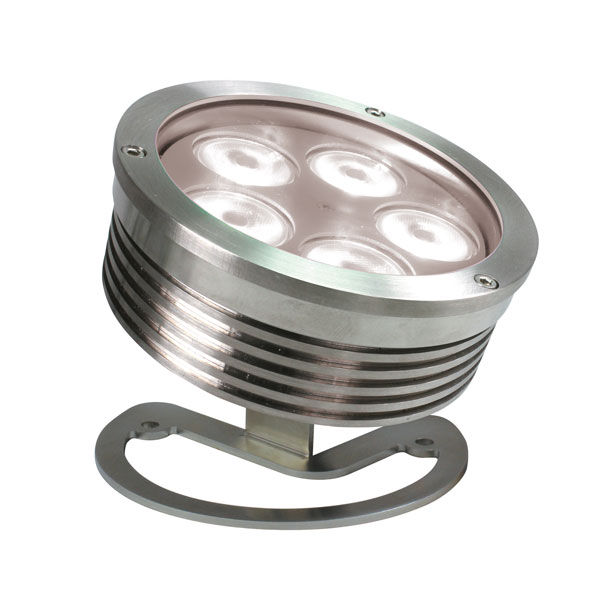

ARIA WL5 24V PLUG-IN (it.215500)
20V-48V version IP 67 stainless steel AISI 304 with bracket lighting fixture suitable for outdoor installations. It includes n.5 x 10W Monochromatic LEDs. Plug-In version.
20V-48V version IP 67 stainless steel AISI 304 with bracket lighting fixture suitable for outdoor installations. It includes n.5 x 10W Monochromatic LEDs. Plug-In version.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 10 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 2500 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Filter f65° frost |
| Connections | |
|---|---|
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Connectors and cables | Main Power: cable 2x1mm 1,5mt |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | CV 20 - 48 VDC |
| Power max (W) | 16 |
| Physical | |
|---|---|
| IP protection rating | 67, 68 optional |
| Mounting systems | Surface, Truss (optional) |
| Materials | Ultra clear 10mm tempered glass, All in stainless steel AISI304 |
| Weight (Kgs) | 2,7 |
| Dimensions d x h (mm) | 134 x 115 |
| Product Category | Spot |
| Finishings | |
|---|---|
| Case | AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional) |
| Others | |
|---|---|
| FILTER-SING 105-W (art.900419) | No, Yes |
| FILTER-SING 105 (art.900420) | No, Yes |
| FILTER-DOUB 105 (art.900421) | No, Yes |
| AR-WB long bracket (art.900538) | No, Yes |
| PS 10 TERRA-ARIA (art. 550170) | No, Yes |
| PS 4 TERRA-ARIA (art.551170) | No, Yes |
| PS 1 TERRA-ARIA (art.552170) | No, Yes |
