ARIA WL5 24V WB (it.215460)

ARIA WL5 24V WB (it.215460)

https://www.studiodue.com/web/image/product.template/1302/image_1920?unique=5a91a4b

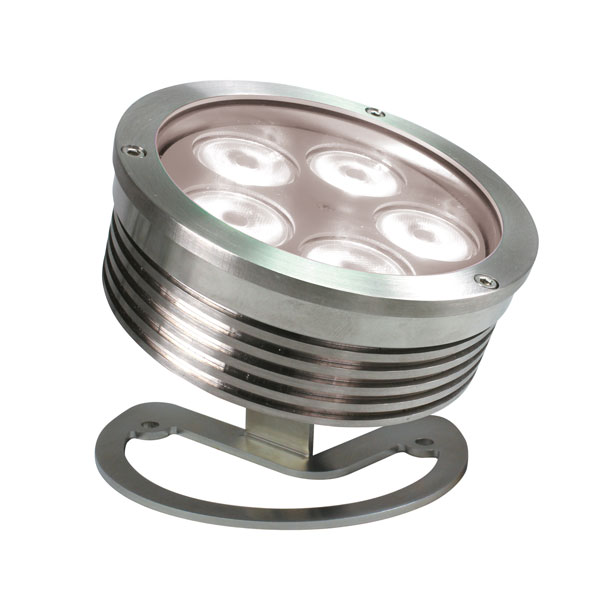

White Balance lighting fixture 20-48V version with DMX on board and external power supply. IP 67 stainless steel AISI 304 with bracket suitable for outdoor installations. It includes 5 warm + 5 cool (10W) white LEDs.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • IP protection rating
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)
  • FILTER-SING 105-W (art.900419)
  • AR-WB long bracket (art.900538)
  • PS 10 TERRA-ARIA (art. 550170)
  • PS 4 TERRA-ARIA (art.551170)
  • PS 1 TERRA-ARIA (art.552170)

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 5 (2700K) + 5 (6500K)
LED expected lifetime (hrs) 50000
Lumen max source (lm) 2200
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Filter f65° frost
Connectors and cables Combo-cable Main Power + DMX signal (2x1mm+3x0,25mm - 1,5mt)
Connettori e cavi (optional) Cable: type and length (optional)
Control type External Power Supply, DMX - RDM, DMX - RDM + DALI
Functions Dedicated DMX channel for white balance from 2700K to 6500K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 4ch - 2ch - 1ch
Input range CV 20 - 48 VDC
Power max (W) 16
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
Mounting systems Surface, Truss (optional)
Dimensions d x h (mm) 134 x 115
Weight (Kgs) 2,7
Product Category Spot
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
FILTER-SING 105 (art.900420) No, Yes
FILTER-DOUB 105 (art.900421) No, Yes
FILTER-SING 105-W (art.900419) No, Yes
AR-WB long bracket (art.900538) No, Yes
PS 10 TERRA-ARIA (art. 550170) No, Yes
PS 4 TERRA-ARIA (art.551170) No, Yes
PS 1 TERRA-ARIA (art.552170) No, Yes
