MEGAWHITE 33 M PLUG-IN (it. 210500)

MEGAWHITE 33 M PLUG-IN (it. 210500)

https://www.studiodue.com/web/image/product.template/763/image_1920?unique=1f379f1

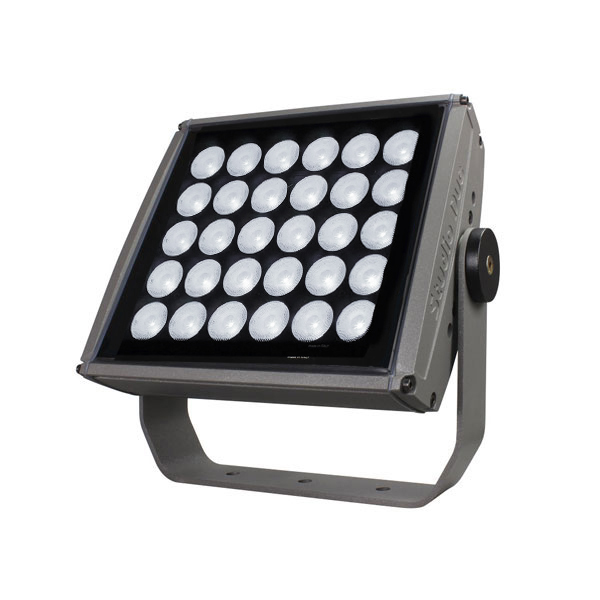

High power Monochromatic fixture. 30 high brightness (5W) White LEDs. IP 67 protection rating. PLUG-IN version.






Specifications

Lighting source
LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Lumen source (lm) 16000
Number of LEDs 30 White (5W)
Optics
Lenses 4° , 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H05 1,5mt
Control
Control type Plug-in
Power supply
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 120
Current 0,55A@230VAC
Power Factor PF>0,95@230VAC
Inrush current 40A@230V
Physical
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional), White RAL 9010 (optional), Any RAL (optional)
Mounting systems Surface, Truss (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Sizes l x p x h (mm) 356x162x320
Weight (Kgs) 8
IP protection rating 67
Product Category Wall Washer
Operating temperature -30°C +45°C
Optional/Accessories
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
_280-AG (art.900008) -, Anti glare
_280-BD (art.900108) -, Barn door
_280-SN (art.900205) -, Snoot
_280-CL (art.900303) -, Cowl
_280-HC (art.900703) -, Honeycomb
_SAFETY WIRE/C (art.900523) -, Safety wire
_CLAMP/C (art.900516) -, Clamp/c
_FFB (art.900517) -, FFB Omega
_MARINE GRADE TREATMENT (art.900546) -, Marine grade treatment
