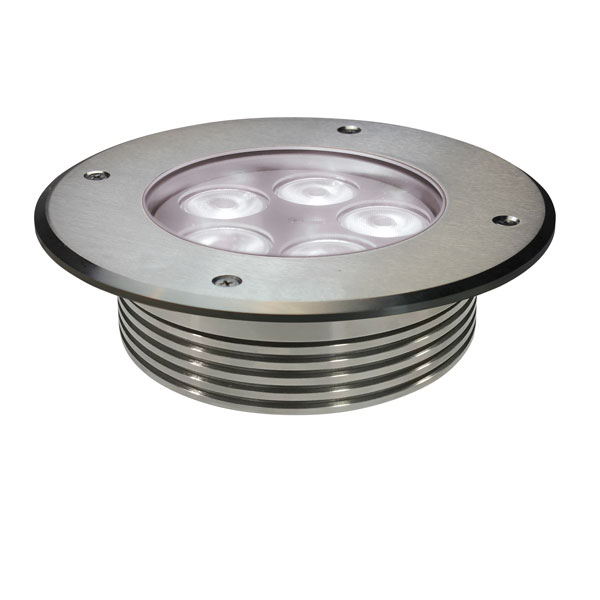

TERRA WL5 24V (it. 210360)
20V-48V version with DMX on-board and external power supply. IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n.5 x 10W Monochromatic LEDs. DMX-RDM-DRS version.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 10 |
| Lumen max source (lm) | 2500 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical, Filter f65° frost |
| Connections | |
|---|---|
| Connectors and cables | Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | CV 20 - 48 VDC |
| Power max (W) | 16 |
| Current | 0,75A@24VDC |
| Physical | |
|---|---|
| IP protection rating | 67, 68 optional |
| Materials | Ultra clear 10mm tempered glass, All in stainless steel AISI304 |
| Mounting systems | Inground |
| Weight (Kgs) | 2,7 |
| Dimensions d x h (mm) | 190 x 52,5 |
| Product Category | Inground |
| IK grade protection | 08 |
| Finishings | |
|---|---|
| Case | AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional) |
| Others | |
|---|---|
| FILTER-SING 105-W (art.900419) | No, Yes |
| FILTER-SING 105 (art.900420) | No, Yes |
| FILTER-DOUB 105 (art.900421) | No, Yes |
| PS 1 TERRA-ARIA (art.552170) | No, Yes |
| PS 10 TERRA-ARIA (art. 550170) | No, Yes |
| PS 4 TERRA-ARIA (art.551170) | No, Yes |
| Plastic Case TER (art.900537) | No, Yes |
