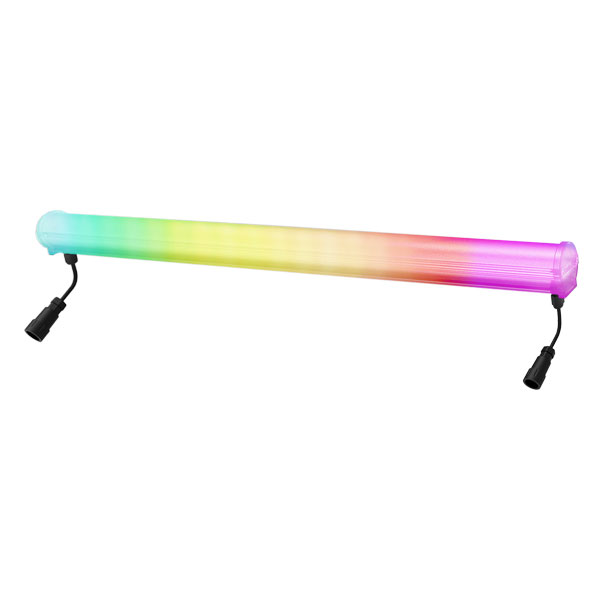

COLORFLOW IC RGB 150cm (it. 209017)
Ultra small form factor LED LINEAR TUBE 150cm (on request) long with IP 67 rating protection. Suitable for architectural lighting, pixel visual effects and light games. 20 single pixel individual control per mt to obtain astonishing effects. Standard 100cm. Aluminium structure and PMMA tube. To drive COLORFLOW IC RGB (individual control) use SPI Power box Driver. On request: adjustable bracket -/+78°. On request 50cm.
Documents
Ultra small form factor LED LINEAR TUBE 150cm (on request) long with IP 67 rating protection. Suitable for architectural lighting, pixel visual effects and light games. 20 single pixel individual control per mt to obtain astonishing effects. Standard 100cm. Aluminium structure and PMMA tube. To drive COLORFLOW IC RGB (individual control) use SPI Power box Driver. On request: adjustable bracket -/+78°. On request 50cm.
Specifications
| Lighting source | |
|---|---|
| LED type | RGB |
| Number of LEDs | 180 |
| Red lumen (lm) | 300 |
| Green lumen (lm) | 795 |
| Blu lumen (lm) | 195 |
| Optics | |
|---|---|
| Lenses | 180° |
| Control | |
|---|---|
| Control type | SPI POWER BOX Driver |
| Power supply | |
|---|---|
| Power max (W) | 45 |
| Current | 1A@48VDC |
| Physical | |
|---|---|
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 1510 x 46 |
| Mounting systems | Surface |
| Marine Grade treatment | None |
| Weight (Kgs) | 2,1 |
| Product Category | Linear Bar |
| Colour finishing | None |
| Others | |
|---|---|
| CF-AB (art.900500) | No, Yes |
