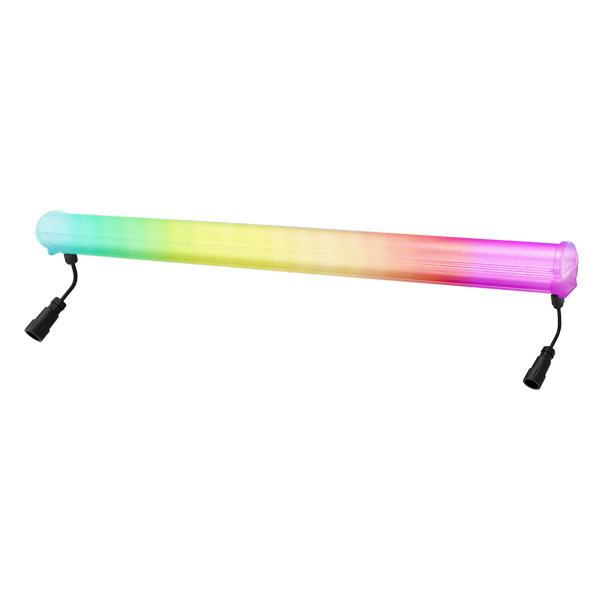

COLORFLOW IC RGB 100cm (it. 209015)

COLORFLOW IC RGB 100cm (it. 209015)

https://www.studiodue.com/web/image/product.template/1455/image_1920?unique=8d8c7ca

Ultra small factor LED LINEAR TUBE with IP 67 rating protection. Suitable for architectural lighting, pixel visual effects and light games. 20 single pixel individual control per mt to obtain astonishing effects. Standard 100cm. Aluminium structure and PMMA tube. To drive COLORFLOW IC RGB (individual control) use SPI Power box Driver. On request: adjustable bracket -/+78°. On request 150cm and 50cm.






Specifications

Lighting source
LED type RGB
Number of LEDs 120
Red lumen (lm) 200
Green lumen (lm) 530
Blu lumen (lm) 130
Optics
Lenses 180°
Control
Control type SPI POWER BOX Driver
Power supply
Power max (W) 30
Current 0,65A@48VDC
Physical
IP protection rating 67
Sizes l x p x h (mm) 1010 x 46
Mounting systems Surface
Marine Grade treatment None
Weight (Kgs) 1,4
Product Category Linear Bar
Colour finishing None
Others
CF-AB (art.900500) No, Yes
