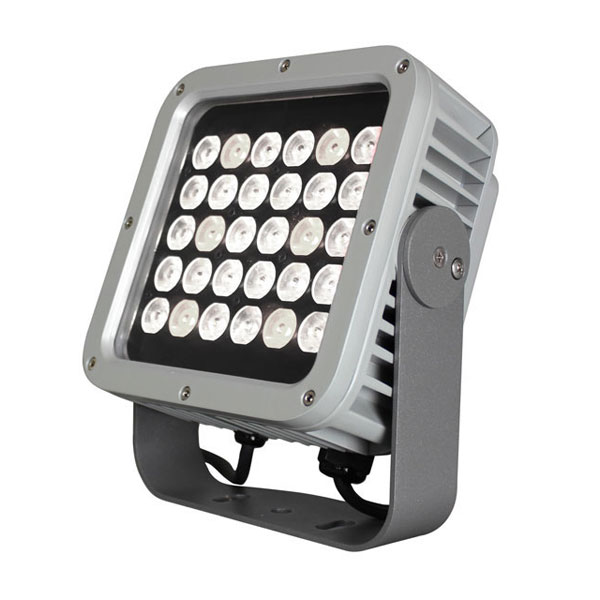

SMART MAX 30 WB (it. 205210)

• LED type
  • CW+WW (5W)
• Number of LEDs
  • 15 Warm White (2700K) + 15 Cool White (6500K) NICHIA-NVSL219C
• LED expected lifetime (hrs)
  • 50000
• Lumen max source (lm)
  • 4500
• Lenses
  • 5°
  • 10°x30°
  • 12°
  • 15°x55°
  • 24°
  • 36°
  • 60°
• Filters (optional)
  • None
  • Elliptical projection filter 60° x n° (n° = native lens) horizontal
  • Elliptical projection filter n° x 60° (n° = native lens) vertical
• Connectors and cables
  • Main Power: 3x1,5mm cable
  • DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
• Connettori e cavi (optional) Cable: type and length (optional)
• Control type
  • DMX - RDM
  • DMX - RDM + Wireless (on request)
• Functions
  • RDM/DRS
  • Dedicated DMX channel for white balance from 2700K to 6500K
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Continuous dimming 0-100%
  • Smooth dimming function
  • Halogen simulation
  • Flicker-free function
• Setup
  • RDM/DRS
• DMX channels
  • 4ch - 2ch - 1ch
• Input range
  • 100 - 240 VAC; 47/63 Hz
• Power max (W)
  • 38
• Current
  • 0,16A@230VAC
• Tilt
  • 175°
• IP protection rating
  • 67
• IK grade protection
  • 07
• Sizes l x p x h (mm)
  • 205x110x235
• Weight (Kgs)
  • 3,2
• Materials
  • Ultra clear 4mm tempered glass
  • PMMA lenses
  • All aluminium alloy
  • Polyester powder coated
• Mounting systems
  • Surface
  • Truss (optional)
• Colour finishing
• Marine Grade treatment
  • None
  • Yes
• Product Category
  • Spot
• SMM30-BD (art.900109)
  • No
  • Yes
• SMM30-AG (art.900015)
  • No
  • Yes
• SMM30-SN (art.900209)
  • No
  • Yes
• SMM30-CL (art.900309)
  • No
  • Yes
