SMART MAX 30 WB (it. 205210)

SMART MAX 30 WB (it. 205210)

https://www.studiodue.com/web/image/product.template/1419/image_1920?unique=45f30e5

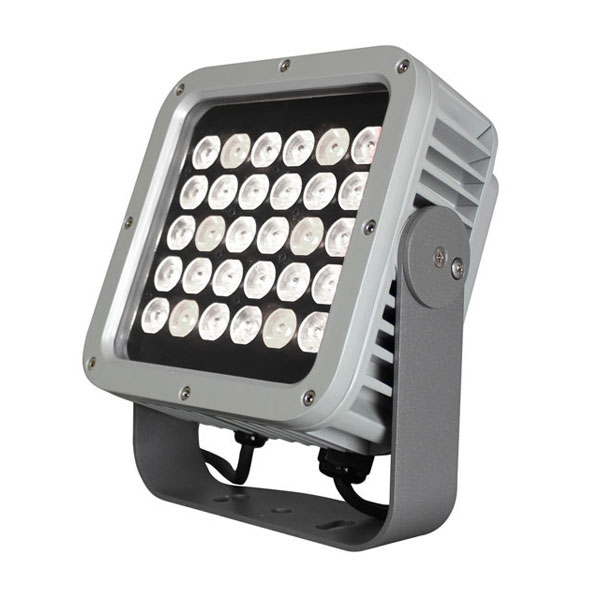

Compact design IP 67 floodlight White Balance projector. RDM protocol. n.15 (2700K) + n.15 (6500K) LEDs. 23 mm lenses


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • SMM30-BD (art.900109)
  • SMM30-AG (art.900015)
  • SMM30-SN (art.900209)
  • SMM30-CL (art.900309)

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 15 Warm White (2700K) + 15 Cool White (6500K) NICHIA-NVSL219C
LED expected lifetime (hrs) 50000
Lumen max source (lm) 4500
Lenses 5°, 10°x30°, 12°, 15°x55°, 24°, 36°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS, Dedicated DMX channel for white balance from 2700K to 6500K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 4ch - 2ch - 1ch
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 38
Current 0,16A@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 175°
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 205x110x235
Weight (Kgs) 3,2
Product Category Spot
SMM30-BD (art.900109) No, Yes
SMM30-AG (art.900015) No, Yes
SMM30-SN (art.900209) No, Yes
SMM30-CL (art.900309) No, Yes
Contact Us


Compact design IP 67 floodlight White Balance projector. RDM protocol. n.15 (2700K) + n.15 (6500K) LEDs. 23 mm lenses
