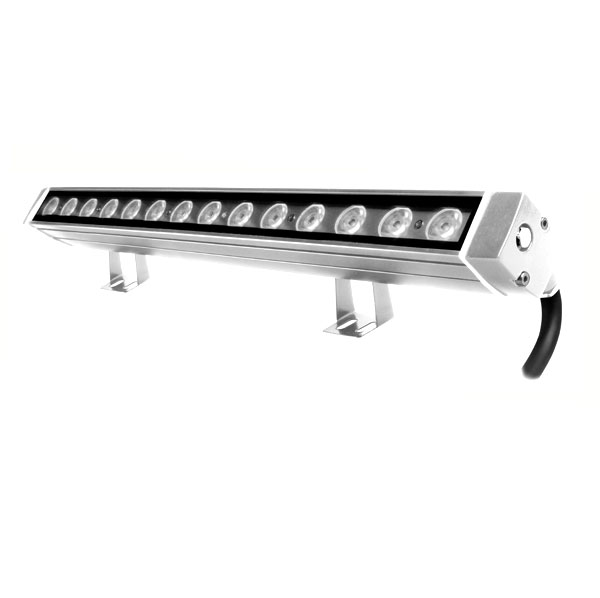

SLIMBAR PLUS POB WB 50cm (it. 201712)

https://www.studiodue.com/web/image/product.template/1412/image_1920?unique=5a91a4b

Ultra small factor LED linear bar 50 cm long (on request) with n.7 (2700K) + n.7 (6200K) white LEDs. On board power supply. 23mm lenses. IP 67 protection rating. Standard 100 cm. Dimmable version.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Daisy chain Power+DMX (max n. fixture)
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 14 (2700K-6200K)
Lumen max source (lm) 2000
Lenses 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM
Functions RDM/DRS
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 18
Daisy chain Power+DMX (max n. fixture) 16
Mounting systems Surface, Truss (optional)
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 525x40x60
Weight (Kgs) 1
Colour finishing Anodized light grey
Marine Grade treatment None
Product Category Linear Bar
Contact Us


Ultra small factor LED linear bar 50 cm long (on request) with n.7 (2700K) + n.7 (6200K) white LEDs. On board power supply. 23mm lenses. IP 67 protection rating. Standard 100 cm. Dimmable version.
