SLIMBAR PLUS POB PLUG-IN W 100cm (it. 201305)

https://www.studiodue.com/web/image/product.template/283/image_1920?unique=610e0f4

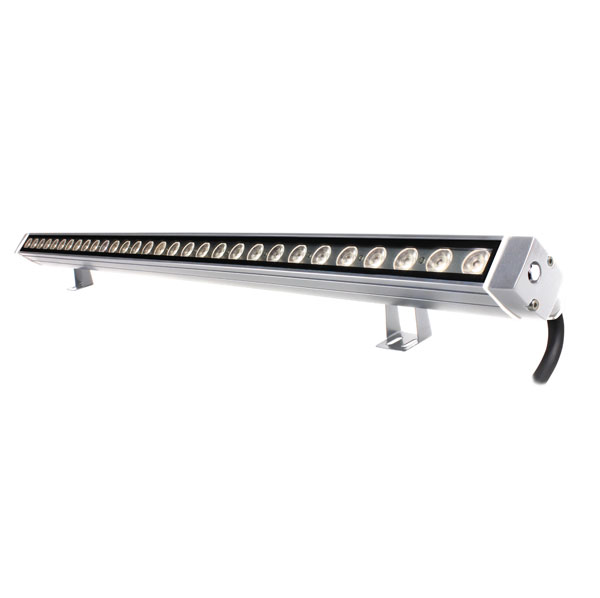

Ultra small form factor LED linear bar with n. 28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. Also available 50 cm (n.14 LEDs) or 30cm (n.10 LEDs). Pug-In version.






Specifications

Lighting source
LED type WHITE 2900K high efficiency mid power, WHITE 4000K high efficiency mid power
Number of LEDs 30
Lumen source (lm) 4000
Optics
Lenses 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female)
Connectors and cables (optional) Cable: type and length (optional)
Control
Control type Plug-in
Functions and Setup
Functions N/A
Power supply
Power max (W) 34
Daisy chain Power+DMX (max n. fixture) 16
Input range 200 - 240 VAC; 47/63 Hz
Physical
Product Category Linear Bar
Sizes l x p x h (mm) 1010 x 40 x 60
IP protection rating 67
IK grade protection 07
Weight (Kgs) 2
Colour finishing Anodized light grey
Marine Grade treatment Standard finish
