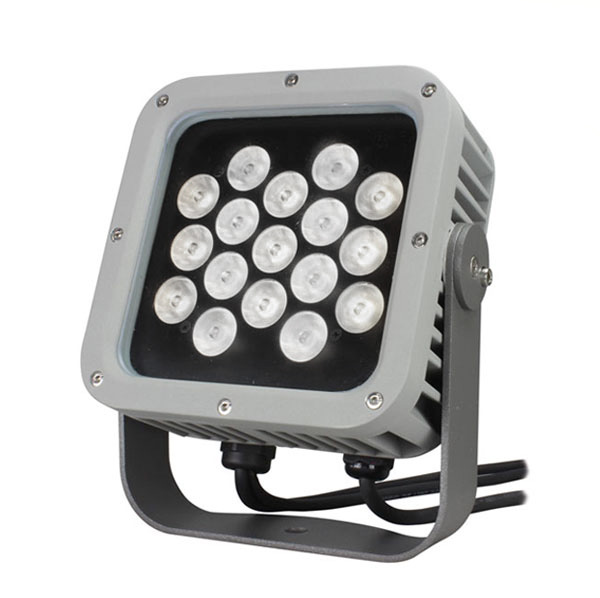

SMART 17 M (it. 200330)

SMART 17 M (it. 200330)

https://www.studiodue.com/web/image/product.template/1280/image_1920?unique=a28dce8

Small form factor, compact design IP 67 floodlight Monochromatic projector. DMX dimmable version. 17 LEDs (4000K). 23 mm lenses.

Not Available For Sale

  • LED type
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • SM17-AG (art.900014)
  • SM17-BD (art.900110)
  • SM17-CL (art.900308)
  • SM17-SN (art.900208)

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 5000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
LED expected lifetime (hrs) 50000
Lumen max source (lm) 4200
Lenses 5°, 10°x30°, 12°, 15°x55°, 24°, 36°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 3ch - 1ch
Input range Universal 100 - 240 VAC; 50/60 Hz
Power max (W) 36
Current 0,16A@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 175°
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 175 x 95 x 205
Weight (Kgs) 2,2
Product Category Spot
SM17-AG (art.900014) No, Yes
SM17-BD (art.900110) No, Yes
SM17-CL (art.900308) No, Yes
SM17-SN (art.900208) No, Yes
