Descrizione prodotto

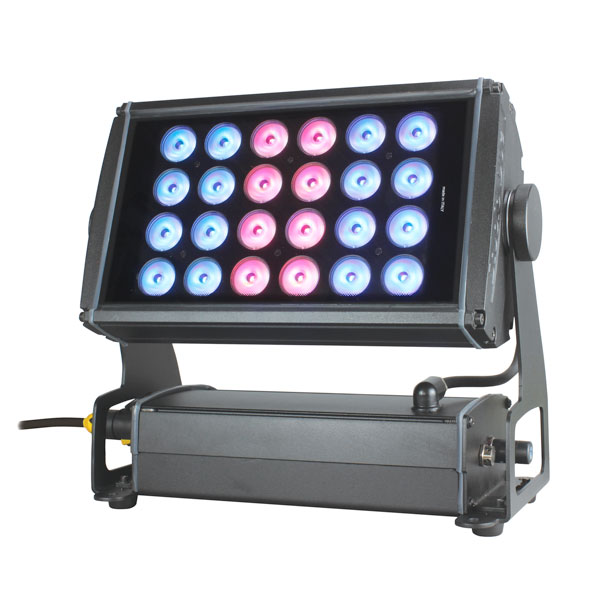

Wash/flood light fixture with 6 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP65 protection rating. RDM/DRS.

Downloads

UM_MP_Color series.pdf

ART.194210 - MP COLOR 24 RGBW.zip
Specifiche tecniche
Icon attribute
Icon attribute
Icon attribute
LED type
RGBW5050MULTICHIP
Number of LEDs
24
Lumen MAX
17952
Red lumen (lm)
3840
Green lumen (lm)
6720
Blu lumen (lm)
1200
White lumen (lm)
7392
Colour temperature range (K)
2000 - 10000
Lenses
15°
15°x30°
25°
40°
60°
Filters (optional)
Diffuser filter on request: indicate a required value (X° - Y°)
None
Connectors and cables
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS + touch control panel
DMX channels
18ch - 12ch - 9ch - 4ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
220
Current
1A@230VAC
Power Factor
PF>0,95@230VAC
Inrush current
60A@230V
IP protection rating
65
67 optional
Mounting systems
Surface
Truss (optional)
Colour finishing
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
IK grade protection
07
Sizes l x p x h (mm)
372 x 206 x 330
Weight (Kgs)
10
Accessories - Handle
None
Yes
Accessories - Flight case
None
Yes
Accessories - Anti glare
None
Yes
Accessories - Barn door
None
Yes
